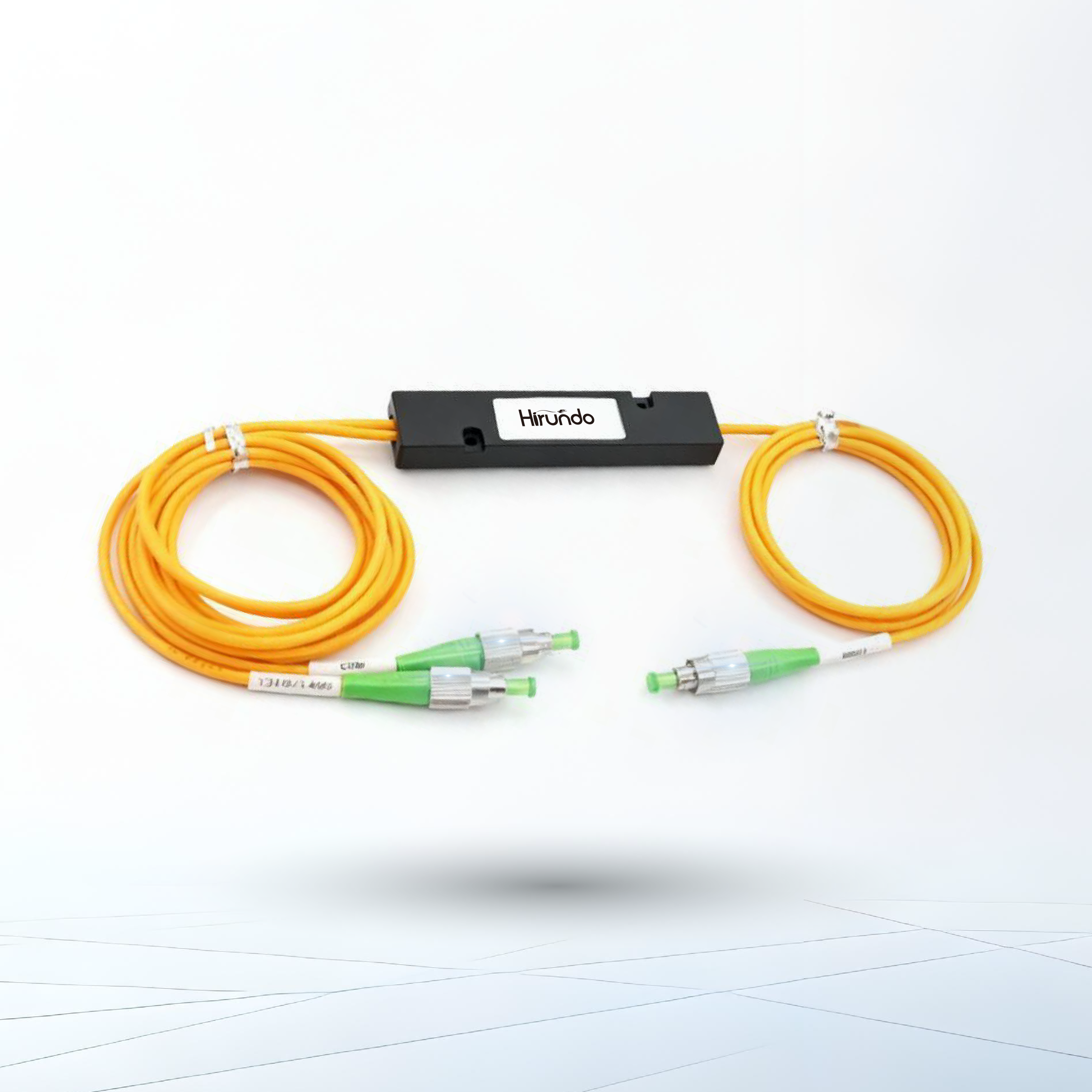

Filter wave divider (FWDM) uses high-performance film filters to ensure high-quality optical performance, stability and reliability. Filter wave division multiplexer can achieve 1310nm, 1550nm two-window optical signal of the combined wave and split wave, so that a single fiber transmission capacity multiplied, but also to achieve fiber two-way communication, widely used in fiber upgrade, expansion or introduction of integrated new services, such as radio and television, telecommunications, Internet and so on.

Order information

FWDM-XXXXXXXXX-XX(FWDM+9 Code+2 Serial Number)

Specifications

Parameters		Specifications			Unit
		FWDM4/35	FWDM5/34	FWDM34/5
Transmission Wavelength		1480-1500	1540-1560	1260-1360&1480-1500	nm
Reflection Wavelength1		1260-1360	1260-1360	1540-1560	nm
Reflection Wavelength2		1540-1560	1480-1500
Insertion Loss1	Transmission	≤0.6			dB
	Reflection	≤0.4			dB
Isolation	Transmission	≥30			dB
	Reflection	≥15			dB
Insertion Loss Temperature Sensitivity		≤0.5			dB
Ripple		≤0.5			dB
Wavelength Temperature Shifting		≤0.002			nm/℃
Polarization Dependent Loss		≤0.2			dB
Polarization Mode Dispersion		≤0.1			ps
Directivity		≥50			dB
Return Loss		≥45			dB
Maximum Power Handing		300			mW
Operating Temperature		-10~+70			℃
Storage Temperature		-40~+85			℃
Package size		Φ5.5×L38			mm
		ABSL90×L20× H10
