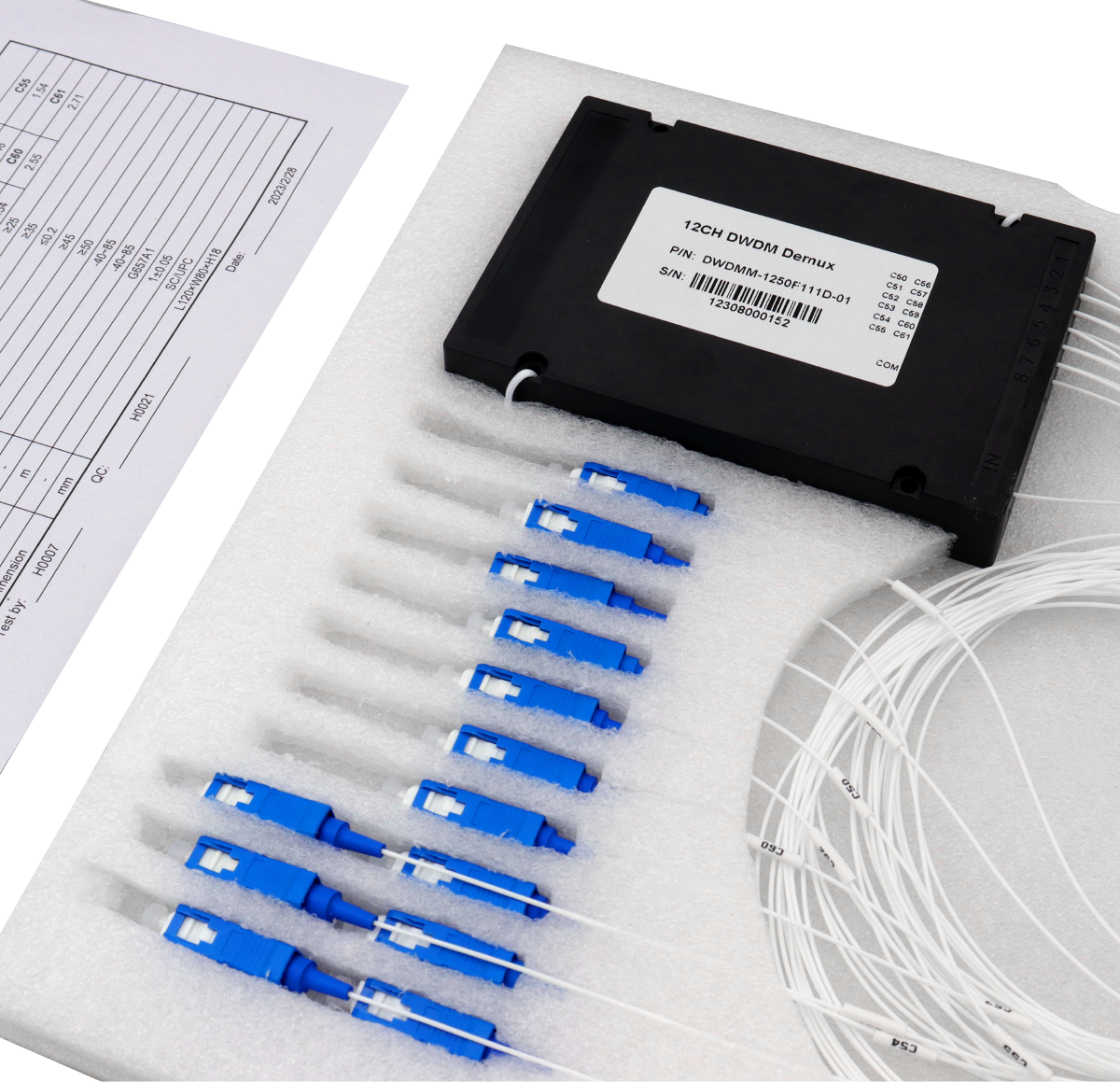

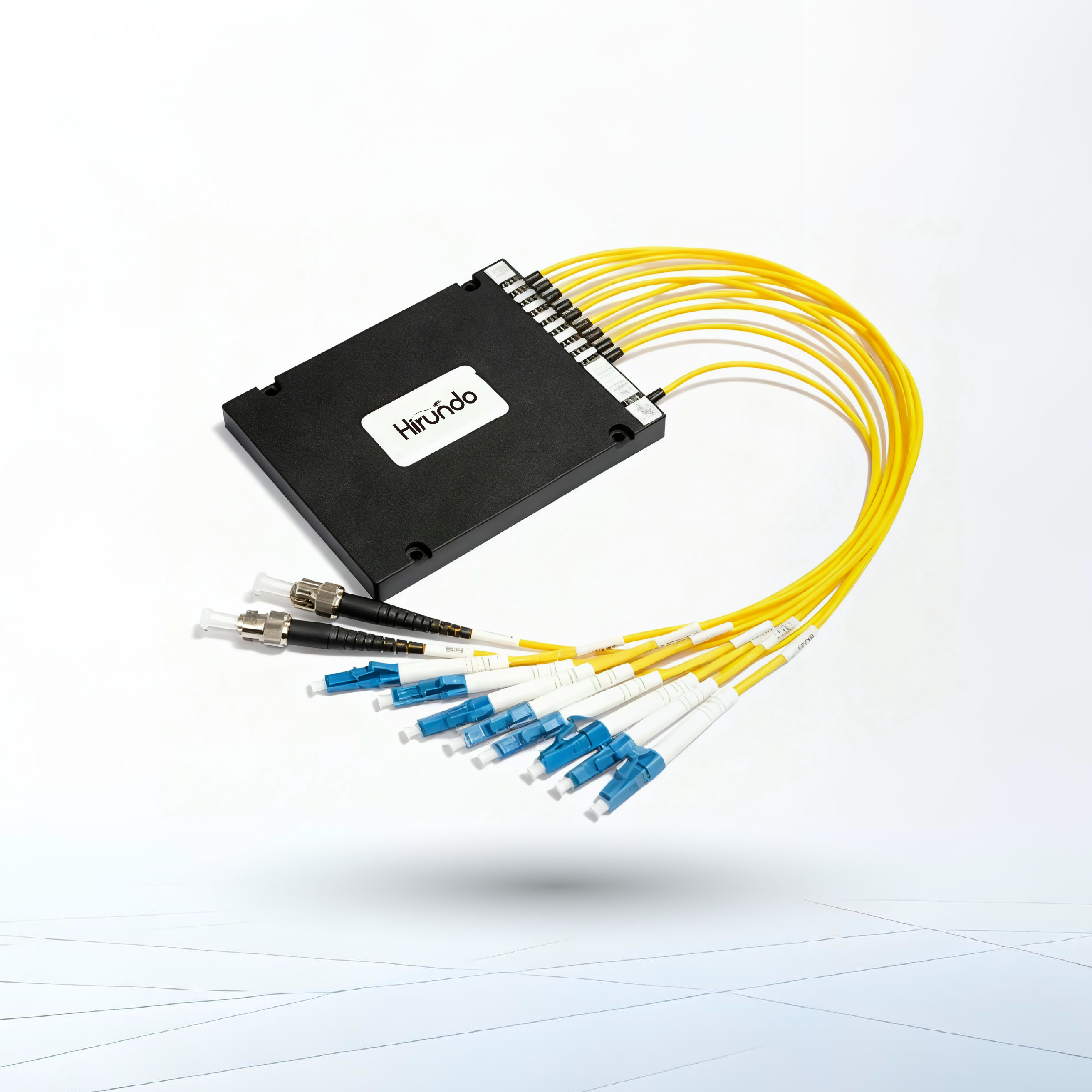

OADM is the use of optical multiplexer to multiplex the optical signal of different wavelengths to a single fiber for transmission, in the receiving end of the link, with the help of the optical solution multiplexer to break down the mixed signal in the fiber into different wavelengths of signal, connected to the corresponding receiving device. It can save fiber resources and network ingmon costs, and it solves the problems of fiber shortage and multi-service transparent transmission.

Order information

OADM ModulePN:OADMM-XXXXXXxxX-XX (OADMM+9 Code+2 Serial Number)

Specifications

Parameters		Specifications		Unit
		4CH	8CH
Operating Wavelength		1460-1620		nm
Channel Wavelength		ITU Grid		nm
Channel Spacing		100 / 200		GHz
Channel Passband(@-0.5dB bandwidth)		≥0.3(100GHz) / ≥0.5(200GHz)		nm
Insertion Loss¹	In=>Drop@drop	≤2.0	≤3.2	dB
	Add=>Out@add	≤2.0	≤3.2	dB
	In=>Out@Other	≤2.5	≤5.0	dB
Isolation	Adjacent	≥30		dB
	Non-adjacent	≥40		dB
Insertion Loss Temperature Sensitivity		≤0.5		dB
Ripple		≤0.5		dB
Wavelength Temperature Shifting		≤0.002		nm/℃
Polarization Dependent Loss		≤0.2		dB
Polarization Mode Dispersion		≤0.1		ps
Directivity		≥50		dB
Return Loss		≥45		dB
Maximum Power Handing		300		mW
Operating Temperature		-10~+70		℃
Storage Temperature		-40~+85		℃
Package size		L100×L80×H10	L120×L80×H18	mm
		Rackmount
