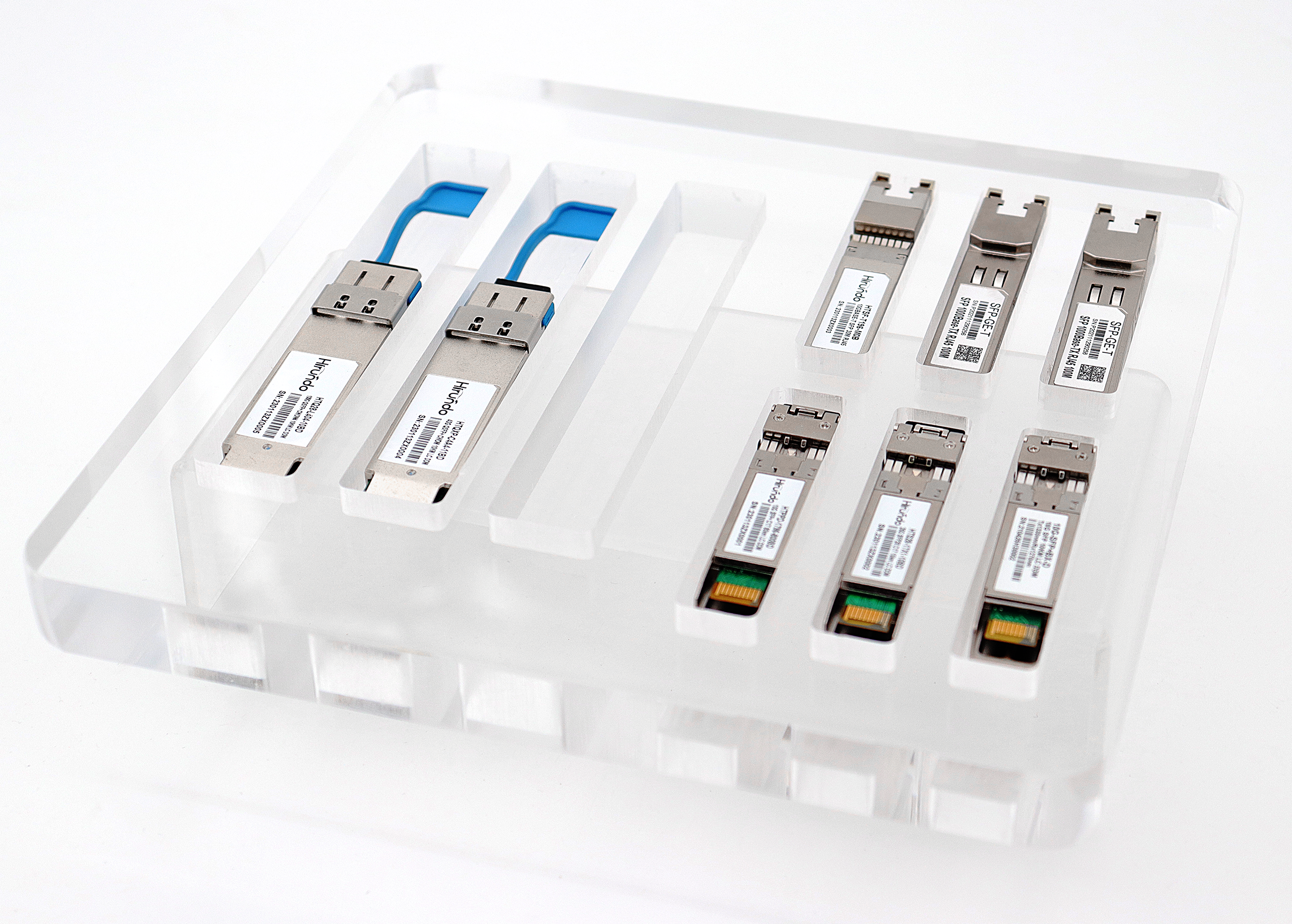

Hirundo’s25G SFP28 series optical module products include SR, LR,ER, CWDM, DWDM, LWDM, MWDM and other series. The LC optical port features low power consumption, small size, high reliability, and wide temperature range. It is mainly applied to data center server access and 5G pretransmission.

Order information

Specifications

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Supply Voltage	VCC	V	3.14		3.46
Supply Current	ICC	A			0.3
Power Consumption	Pc	W			1
Transmitter
Signaling rate per lane		Gbps		25.78
Input Differential Impedance	RIN	Ω	90	100	110
Differential data input swing	VIN	mVp-p	200		600
Receiver
Signaling rate per lane		Gbps		25.78
Output Differential Impedance	RouT	Ω	90	100	110
Differential data output swing	VouT	mVp-p	300		900
IIC communication
IIC Clock frequency	-	KHZ	100		400
