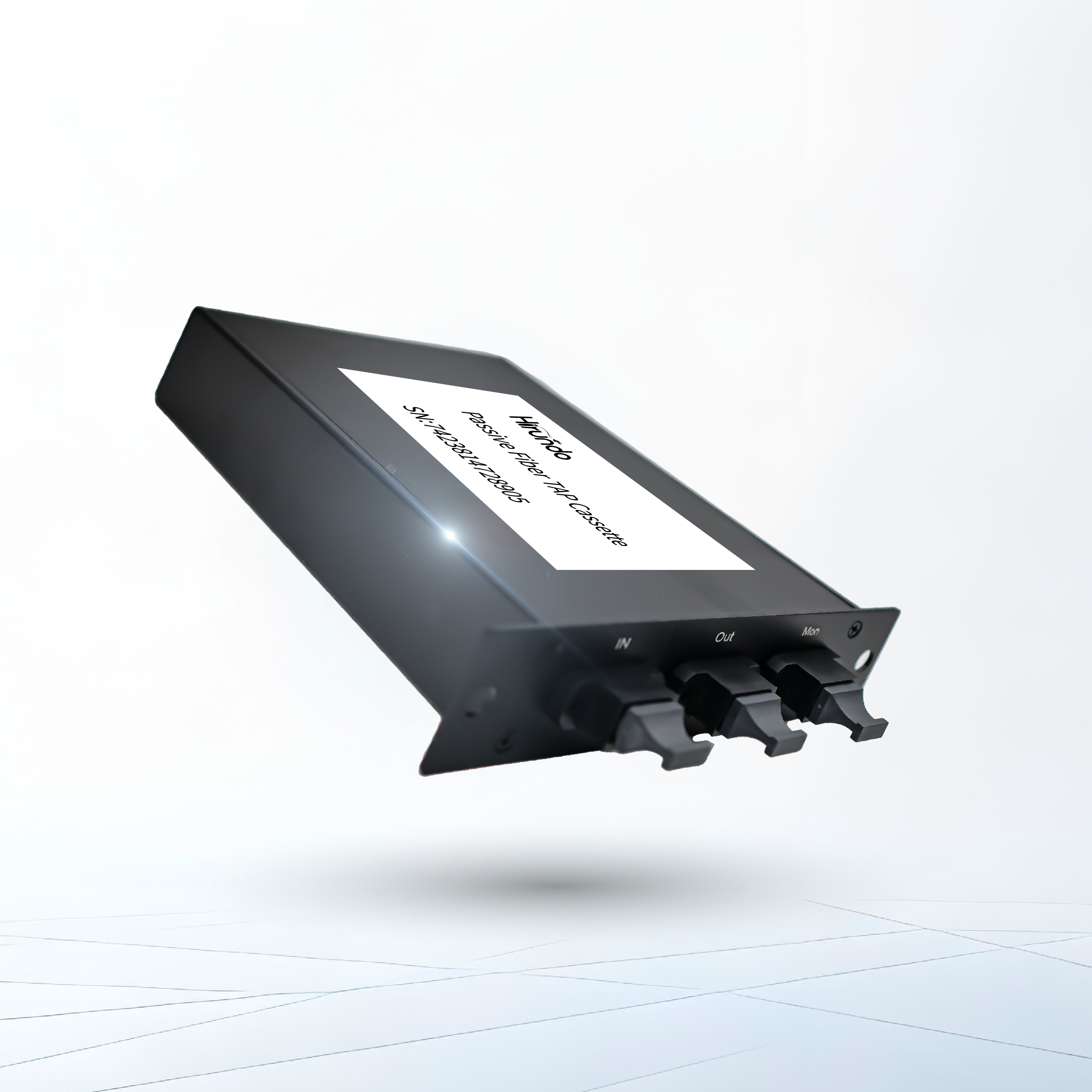

Passive Fiber TAP - Hirundo Communication Equipment - Professional Manufacturer and Solution Provider

Hirundo Optics provides a reliable tap filter device solution to split/combine signals. The splitting ratio ranges from 1/99,2/98..10/90..40/60...30/70...50/50. 1x2,2x2,1x4,4x4 structures are available.Muti mode Fiber type of OM1/OM2/OM3/OM4/OM5 can be selected based on project requried.

Order information

Passive Fiber TAP PN：TAP-XXXXXXXXXX-XX (tap+10 Code+2 Serial Number)

Specifications

Parameters	Specification
Operating Wavelength(nm)	850±40/1300±40
Testing Wavelength(nm)	850/1310
PDL(dB)	≤0.15
Return Loss(dB)	≥30
Directivity(dB)	≥30
Max Optical Power(mW)	≤500
Operating Temperature(℃)	-40~+85
Storage Temperature(℃)	-40~+85
Splitting Ratio Tolerance
Splitting Ratio	Insertion Loss(dB)
50/50	≤3.8
45/55	≤4.4/3.4
40/60	≤4.9/2.9
35/65	≤5.7/2.6
33/67	≤6.0/2.4
30/70	≤6.3/2.1
25/75	≤7.3/1.9
20/80	≤8.4/1.4
15/85	≤10.0/1.2
10/90	8.80~11.40/≤0.8
5/95	11.60~14.60/≤0.5
3/97	13.60~17.05/≤0.45
2/98	15.15~19.00/≤0.4
1/99	17.95~22.25/≤0.35
