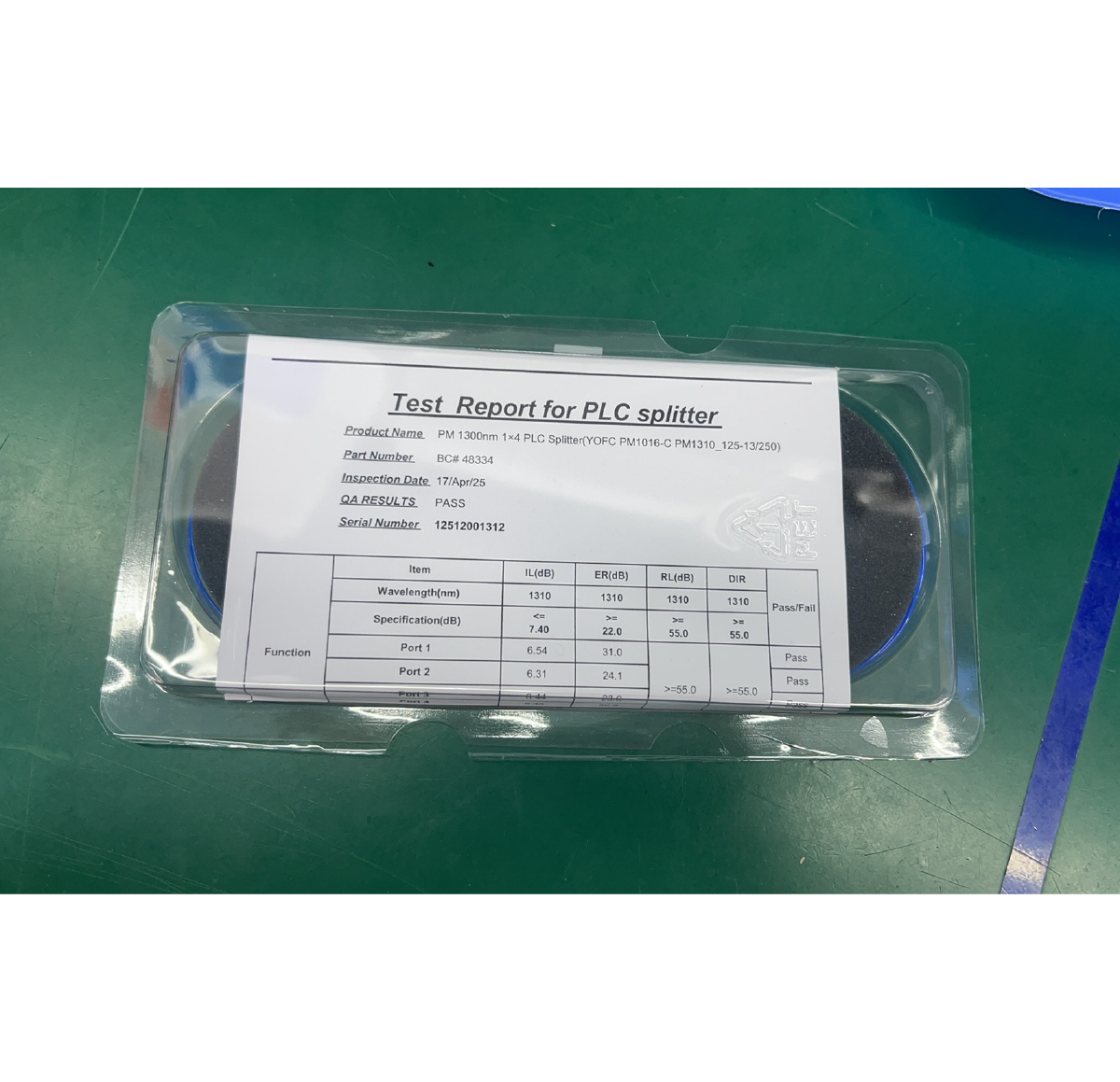

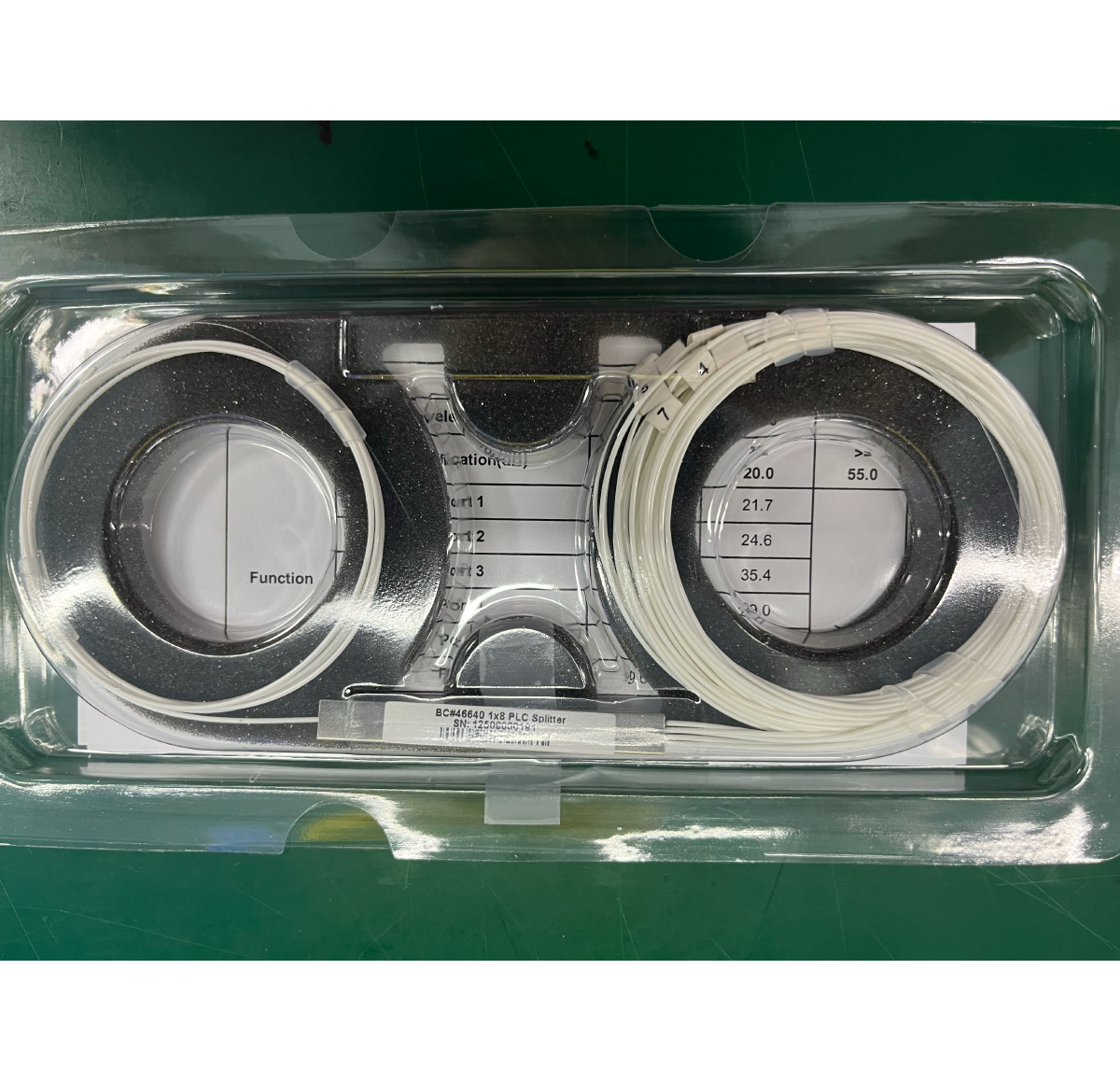

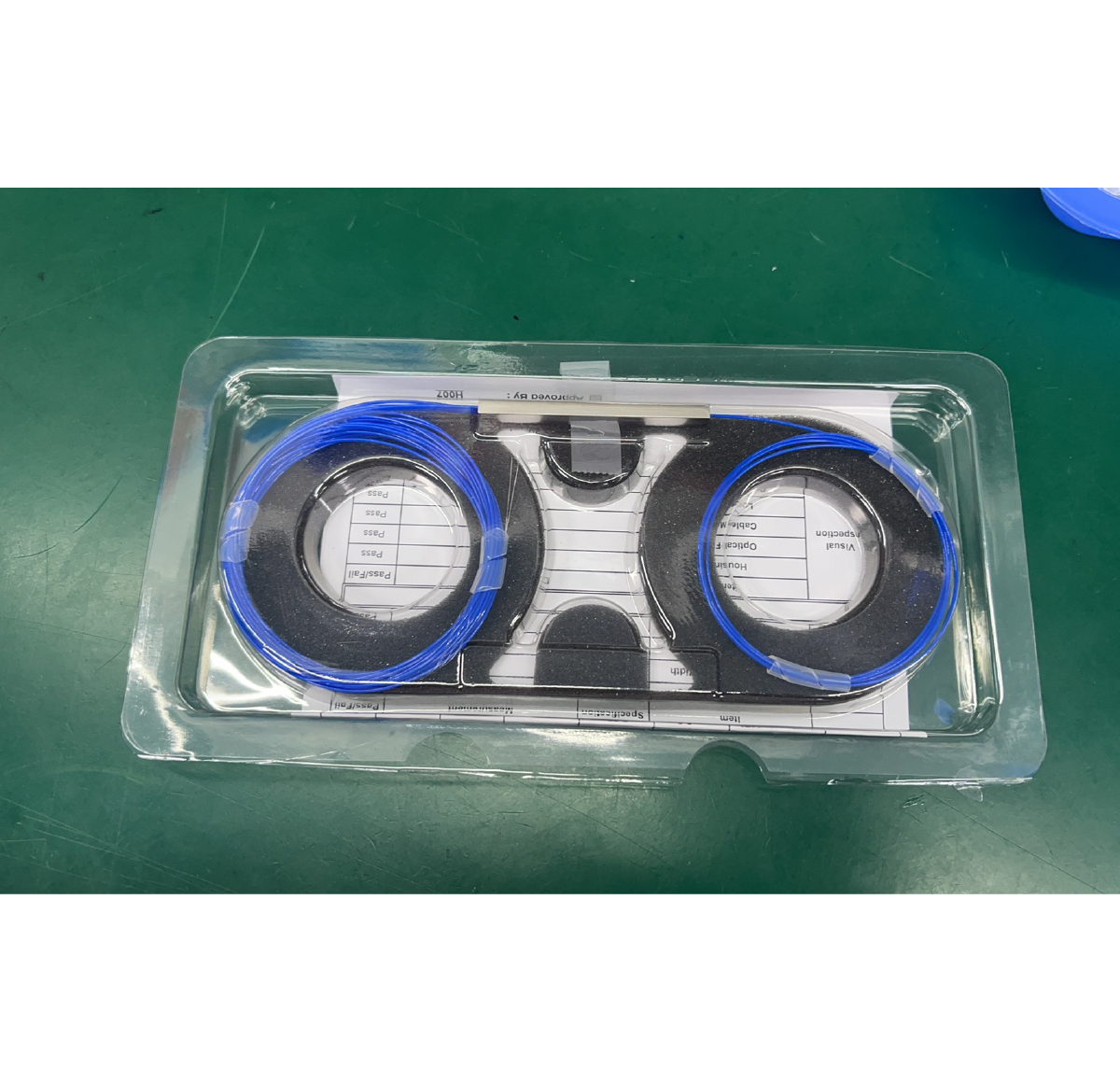

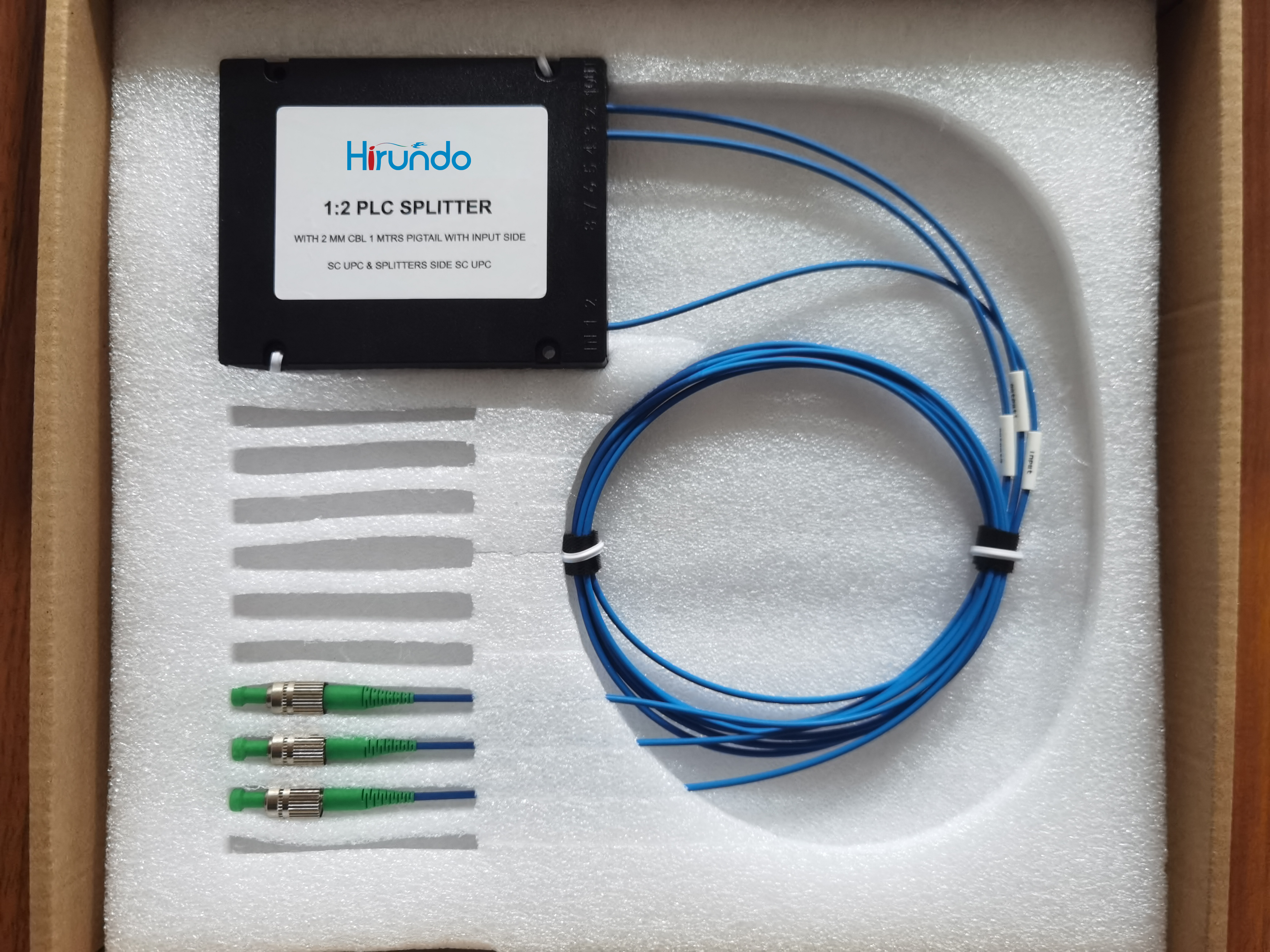

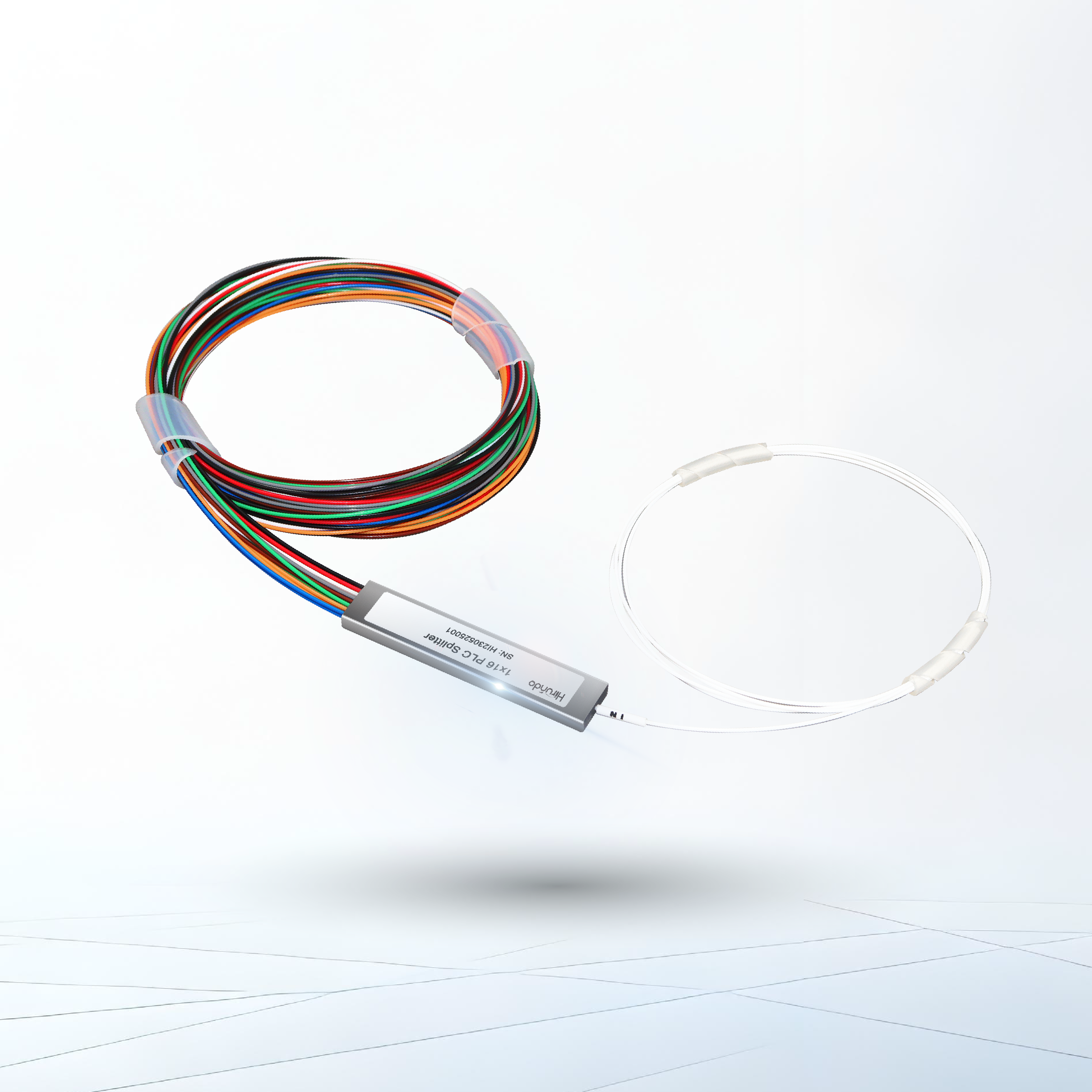

Hirundo'Splanar waveguide optical Splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. Suitable for passive optical network(EPON, BPON, GPON, etc.) and FTTX network to connect the local terminal and terminal equipment and realize optical signal shunt.It is one of the most important passive optical devices i n optical fiber links. It has one or more input terminals and several output terminals. The three most important components of the optical fiber array are input, output and chip. The design and assembly of these three components play an important role in the stable and normal operation of the PLC optical shunt.

Order information

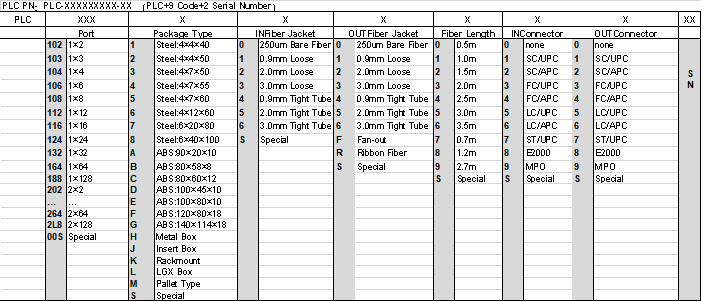

PLC PN:PLC-XOXXXX-XX(PLC+9Code+2 Serial Number)

Specifications

1×N PLC Splitter Table1

Parameters	Unit	Specifications
Parameters	Unit	1×2	1×4	1×8	1×16	1×32	1×64	1×128
Operating Wavelength	nm	1260~1650
Fiber Type		G657A1 or Customize
Insertion Loss	dB	3.8/4.0	7.2/7.4	10.3/10.7	13.5/13.7	16.5/16.9	20.5/21	23.8/24.2
Uniformity	dB	≤0.4	≤0.6	≤0.8	≤1.0	≤1.5	≤2.0	≤2.5
Polarization Dependent Loss	dB	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4
Wavelength-related losses	dB	≤0.5	≤0.5	≤0.5	≤0.5	≤1.0	≤1.0	≤1.0
Return Loss	dB	≥55
Directivity	dB	≥55
Fiber Length	m	1.5
Temperature stability	dB	≤0.5
Optical Average Power	mW	500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

1×N PLC Splitter Table2

Parameters	Unit	Specifications
Parameters	Unit	1×3	1×6	1×12	1×24	1×48
Operating Wavelength	nm	1260~1650
Fiber Type		G657A1 or Customize
Insertion Loss	dB	6.1	9.0	12.5	15.5	18.4
Uniformity	dB	≤0.5	≤0.6	≤1.0	≤1.5	≤1.8
Polarization Dependent Loss	dB	≤0.25	≤0.25	≤0.3	≤0.3	≤0.4
Wavelength-related losses	dB	≤0.5	≤0.5	≤0.5	≤1.0	≤1.0
Return Loss	dB	≥55
Directivity	dB	≥55
Fiber Length	m	1.5
Temperature stability	dB	≤0.5
Optical Average Power	mW	500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

1×N PLC Splitter Table3（Multi-Mode Fiber）

Parameters	Unit	Specifications
Parameters	Unit	1×2	1×3	1×4	1×6	1×8	1×16
Operating Wavelength	nm	650~1350, or On Request
Fiber Type		50/125 or 62.5/125 um Multi-Mode Fiber
Insertion Loss	dB	3.7	5.8	7	9.4	10.5	14
Uniformity	dB	≤0.6	≤0.8	≤1.0	≤1.2	≤1.5	≤1.8
Polarization Dependent Loss	dB	≤0.1	≤0.1	≤0.1	≤0.1	≤0.1	≤0.15
Return Loss	dB	≥40 or On Request
Directivity	dB	≥50
Fiber Length	m	1.5 or On Request
Temperature stability	dB	≤0.5
Optical Average Power	mW	500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85

2×N PLC Splitter Table4

Parameters	Unit	Specifications
Parameters	Unit	2×2	2×4	2×8	2×16	2×32	2×64	2×128
Operating Wavelength	nm	1260~1650
Fiber Type		G657A1 or Customize
Insertion Loss	dB	3.9/4.2	7.3/7.6	10.5/11	14.4/14.6	17.4/17.9	21/21.5	24.5/25
Uniformity	dB	≤0.6	≤1.0	≤1.2	≤1.5	≤1.8	≤2.2	≤2.5
Polarization Dependent Loss	dB	≤0.2	≤0.2	≤0.2	≤0.3	≤0.3	≤0.4	≤0.4
Wavelength-related losses	dB	≤0.5	≤0.5	≤0.5	≤0.5	≤1.0	≤1.0	≤1.0
Return Loss	dB	≥55
Directivity	dB	≥55
Fiber Length	m	1.5
Temperature stability	dB	≤0.5
Optical Average Power	mW	500
Operating Temperature	℃	-40~+85
Storage Temperature	℃	-40~+85
