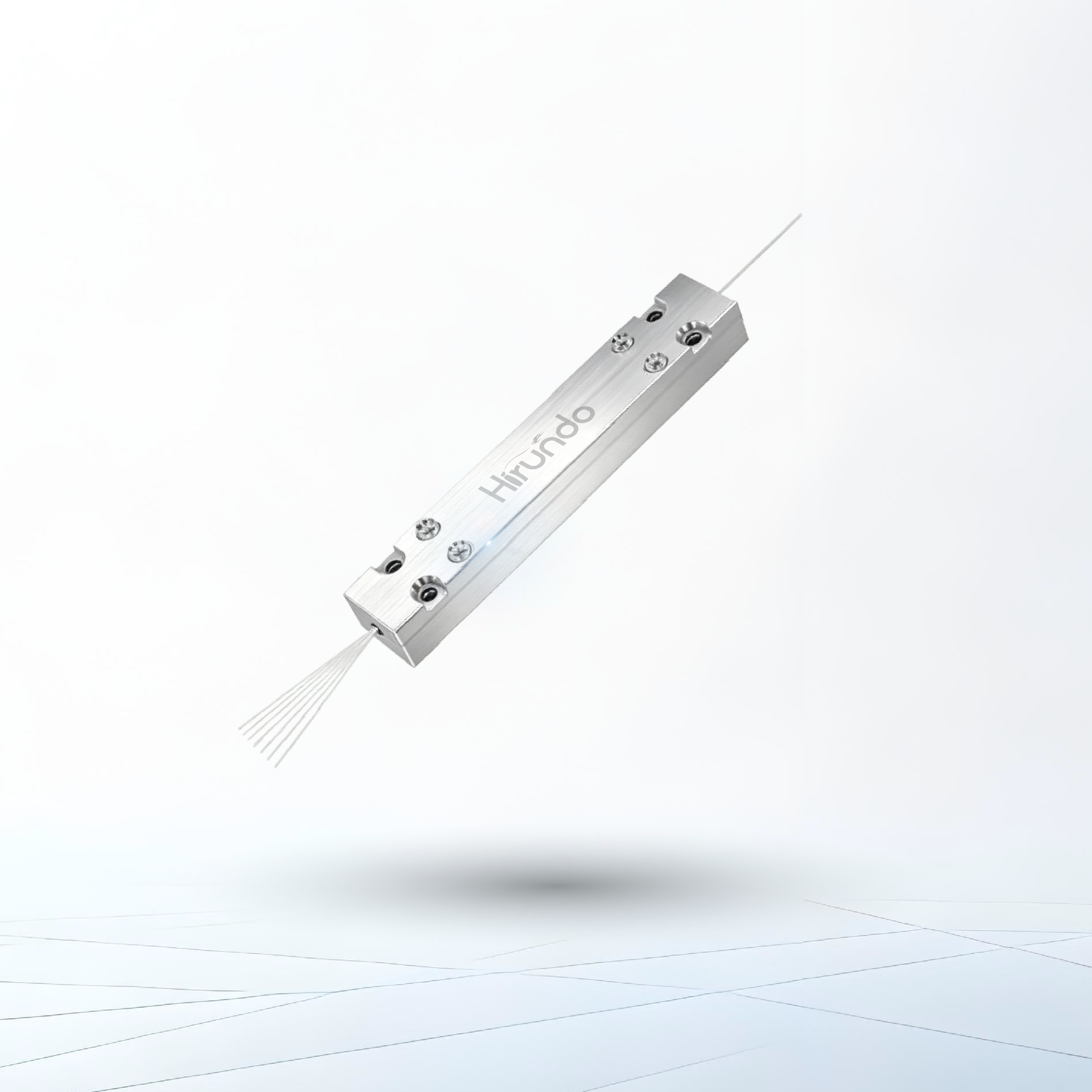

Our PM Pump and Signal Combiners are high-performance passive fiber-optic components designed for a wide range of applications, including high-power fiber lasers, fiber amplifiers (EDFA, YDFA), and scientific instrumentation. They are engineered to efficiently combine a high-power pump laser beam with a low-power signal beam into a single, common Polarization-Maintaining (PM) output fiber while preserving the polarization state of the signal.

Order information

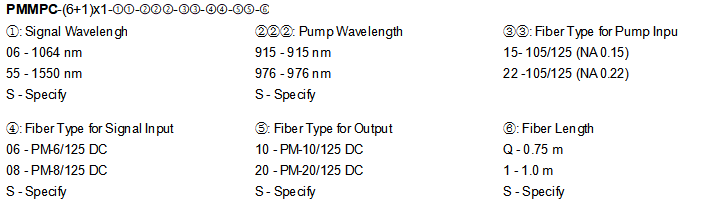

PN：PMMPC-XXXXXXXXXX-XX (PMMPC+10 Code+2 Serial Number)

Specifications

Parameter	Unit	Value
Product Type		PM (6+1) x 1/PM(N+1)X1
Pump Wavelength Range	nm	900 - 1000
Signal Wavelength Range	nm	1064,1550
Fiber Type for Input(Pump Channel)	µm	Nufern 105/125(0.15 NA or 0.22 NA)
Fiber Type for Input(Signal Channel)	µm	PM980, PM1550, PM-6/125 DC or PM-8/125 DC
Fiber Type for Output	µm	PM-10/125 DC or PM-20/125 DC
Max. Signal Channel Insertion Loss	dB	0.5
Min. Signal Channel PER		18
Min. Pump Efficiency	%	98
Max. Input Pump Power	W	6 x 100
Package Dimensions	mm	100(L) x 15(W) x 10(H)
Operating Temperature	℃	-5 to +65
Storage Temperature	℃	-40 to +85
