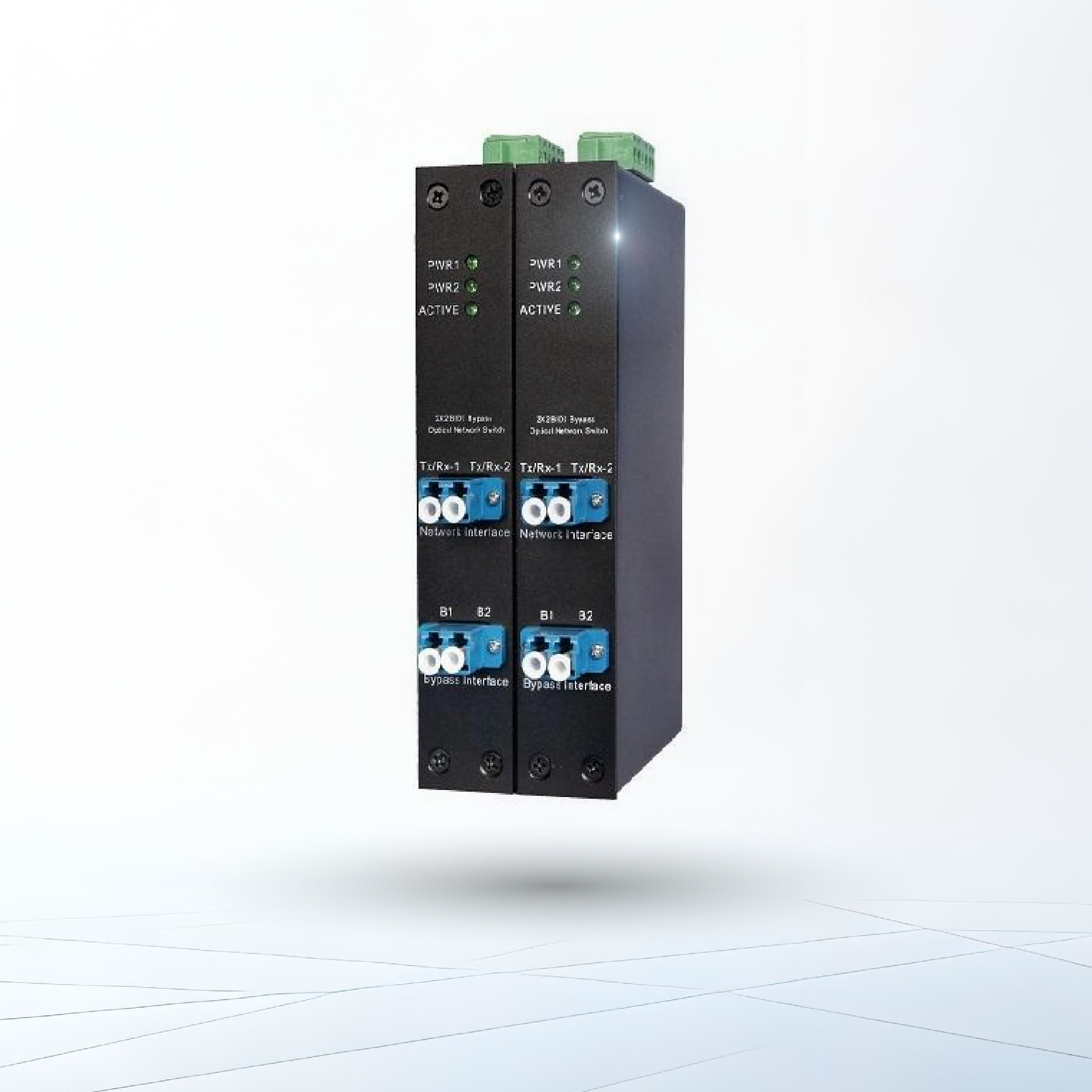

OBS Optical Switch - Hirundo Communication Equipment - Professional Manufacturer and Solution Provider

the OBS Optical Switch is used to turn on, turn off and switch optical signal. The OBS Optical Switch is based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is the key to a new generation of all-optical network in near future.

Order information

AAWG(Athermal AWG) PN：AAWG-XXXXXXXXXX-XX (AAWG+10 Code+2 Serial Number)

Specifications

Parameters	2×2 Bypass-SM/MM
Operating Wavelength(nm)	1260-1650	850/1300
Straight Insertion Loss1(dB)	Max:1.0 (Typ:0.5)	Max:0.8 (Typ:0.5)
Bypass Insertion Loss1(dB)	Max:1.6 (Typ:0.8)	Max:1.2 (Typ:0.6)
Return Loss(dB)	Typ: 50	Typ: 30
Min. Crosstalk(dB)	SM 55	MM 45
Max. Polarization Dependent Loss(dB)	0.1
Max. Wavelength Dependent Loss(dB)	0.3
Max. Temperature Dependent Loss(dB)	0.25
Repeatability(dB)	±0.1
Lifetime(Cycles)	≥ 107
Switch Time (ms)	≤8
Optical Input Power(mW)	≤500
Operating Temperature(℃)	-20~+70
Storage Temperature(℃)	-40~+85
Operating Humidity(%RH)	5~95
Storage Humidity(%RH)	5~95
Operating Current(mA)	150±10%
Power supply(V)	12~48 DC
Power Consupmption(mW)	750±10%
EMI Certification	FCC Class B
