1×N Motorized Optical Switch

Wavelenth:

Fiber Type:

Connector Type:

Fiber Jacket:

1×N Motorized Optical Switch is an optical path control device that can be used to protect optical devices from faults (power outages, hardware failures, abnormal lighting, software deadlocks, etc.) by bypassing this node and ensuring that the network is not affected. It can automatically identify the power supply status, optical signal output status, and software operation status of network nodes, and has functions such as power failure bypass, no optical bypass, and no heartbeat signal bypass. Mainly used for protecting flow control equipment, repeater optical equipment, etc.
Order information

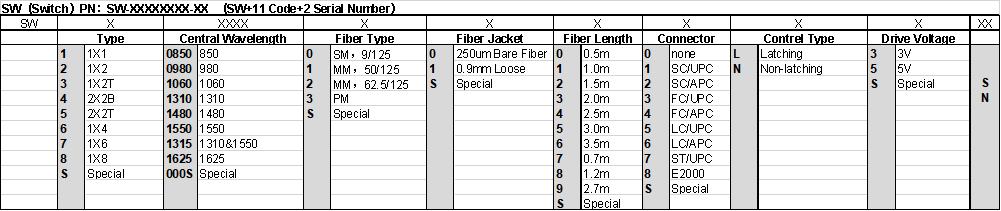

MOS (Optical Switch)PN:MOS-XXXXxxx-xX(MOS+7Code+2 Serial Number)
A B C D E F G
Fiber Type Working Voltage Control Type Test Wavelength Tube Type Fiber length Connector Type
SM: 3: L: 850: 25: 05: OO: None
SM,9/125 3V locking 850nm 250um 0.5m±5cm FP: FC/PC
M5: 5: N: 1310: 90: 10: FA: FC/APC
MM,50/125 5V Non-locking 1310nm 900um 1.0m±5cm SP: SC/PC
M6: 8513: X: 15: SA: SC/APC
MM,62.5/125 850/1310nm Others 1.5m±5cm STP: ST/PC
X: 1550: X: LP: LC/PC
Others 1550nm Others LA: LC/APC
1315: DLP: Duplex
1310/1550nm LC/PC
X: X: Others
Others
Specifications
Parameters Unit 1×N
Channel number - N ≤ 64 65 ≤ N ≤ 128
Wavelength range nm SM: 1260~ 1650   MM: 850±40/ 1300±40 or 1260~ 1650
Test wavelength nm SM: 1310/ 1550    MM: 850/ 1300 or 1550
Insertion loss dB Typ: 0.6  Max: 0.8 Typ: 1.0  Max: 1.2
Return loss dB SM ≥ 50 MM ≥ 30
Crosstalk dB SM ≥ 70 MM ≥ 55
PDL dB ≤ 0.10
WDL dB ≤ 0.25
Repetition dB ≤ ±0.05
Service life Cycles ≥ 10 Million
Switching time ms 10×( n-m ) + 5      ( from port m to n, n>m )
10×( n-m ) + 30 ( from port n to m, n>m )
Light power mW ≤ 500
Working temperature ℃ -20 ~ +70
Storage temperature ℃ -40 ~ +85
Relative humidity % 5 ~ 95
Package size 135×44×32(N≤8) 135×64×32(N≤16) 184×78×36(N≤16) 150×80×32(N≤16) 150× 120×32(N≤32)
Control interface mm 150×80×70(N≤64) 150× 150×70(N≤128)
控制接口 - Parallel port / Serial port (TTL/RS232 optional)
Note: The above parameters do not include the connectors.
