D2x2B Optical Switch

Wavelength:

Connector Type:

type:

Fiber Jarket:

Connector Type:

The 2x2B fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen- ding opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
Order information

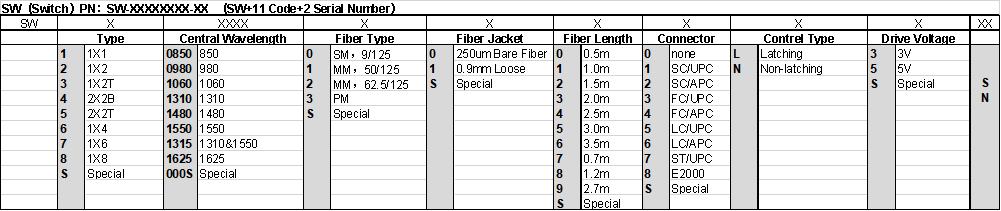

SW(Switch)PN:SWXXXXXXXX-XX(SW+11Code+2 Serial Number)
A B C D E F G
Fiber Type Working Voltage Control Type Test Wavelength Tube Type Fiber length Connector Type
SM: 3: L: 850: 25: 05: OO: None
SM,9/125 3V locking 850nm 250um 0.5m±5cm FP: FC/PC
M5: 5: N: 1310: 90: 10: FA: FC/APC
MM,50/125 5V Non-locking 1310nm 900um 1.0m±5cm SP: SC/PC
M6: 8513: X: 15: SA: SC/APC
MM,62.5/125 850/1310nm Others 1.5m±5cm STP: ST/PC
X: 1550: X: LP: LC/PC
Others 1550nm Others LA: LC/APC
1315: DLP: Duplex
1310/1550nm LC/PC
X: X: Others
Others
Specifications
Parameters Unit 2×2B
Wavelength range nm 850±40 / 1300±40 1260 ~ 1650
Test wavelength nm 850 / 1300 1310 / 1550
Insertion loss dB ≤ 0.8
Return loss dB ≥ 30 ≥ 50
Crosstalk dB ≥ 35 ≥ 55
PDL dB -- ≤ 0.05
WDL dB ≤ 0.25
Repetition dB ≤ ±0.02
Working voltage V 3.0   or   5.0
Service life Cycles ≥10 Million
Switching time ms ≤ 8
Light power mW ≤ 500
Working temperature ℃ -5~ +70
Storage temperature ℃ -40 ~ +85
Relative humidity % 5 ~ 95
Weight g 13
Size mm (L)27.0×(W)12.6×(H)8.2 ±0.2

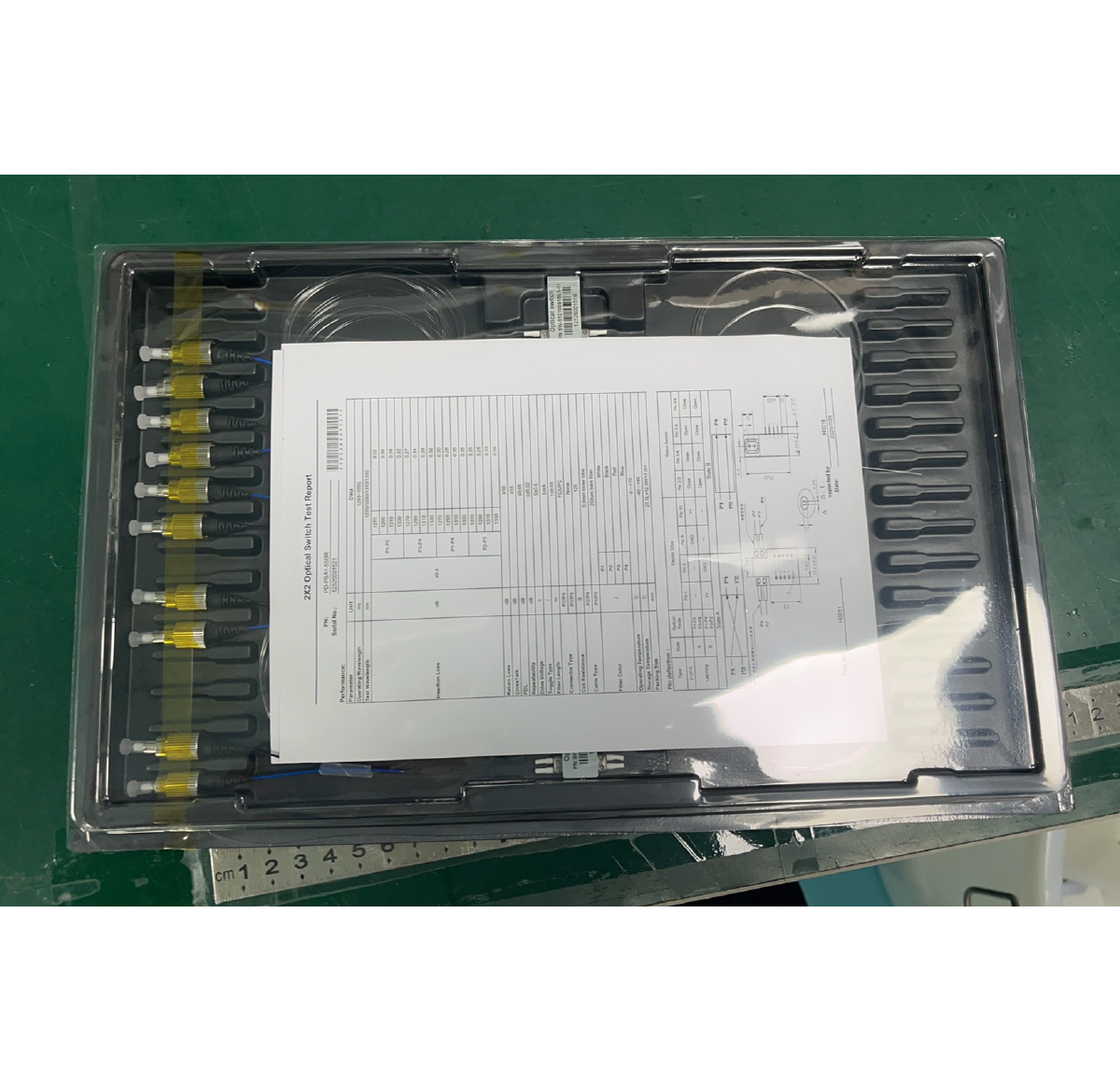

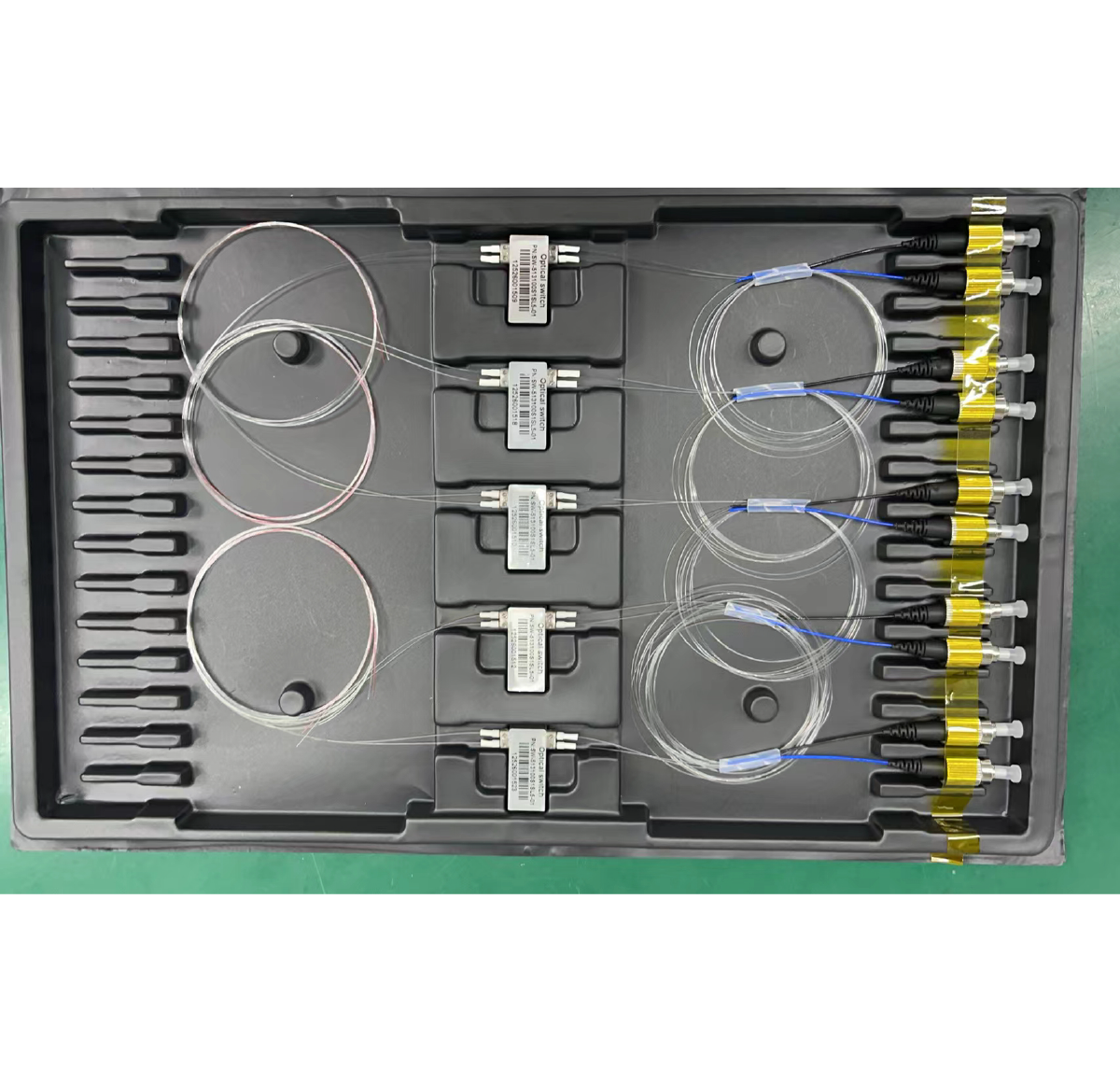

Packaging pictures
