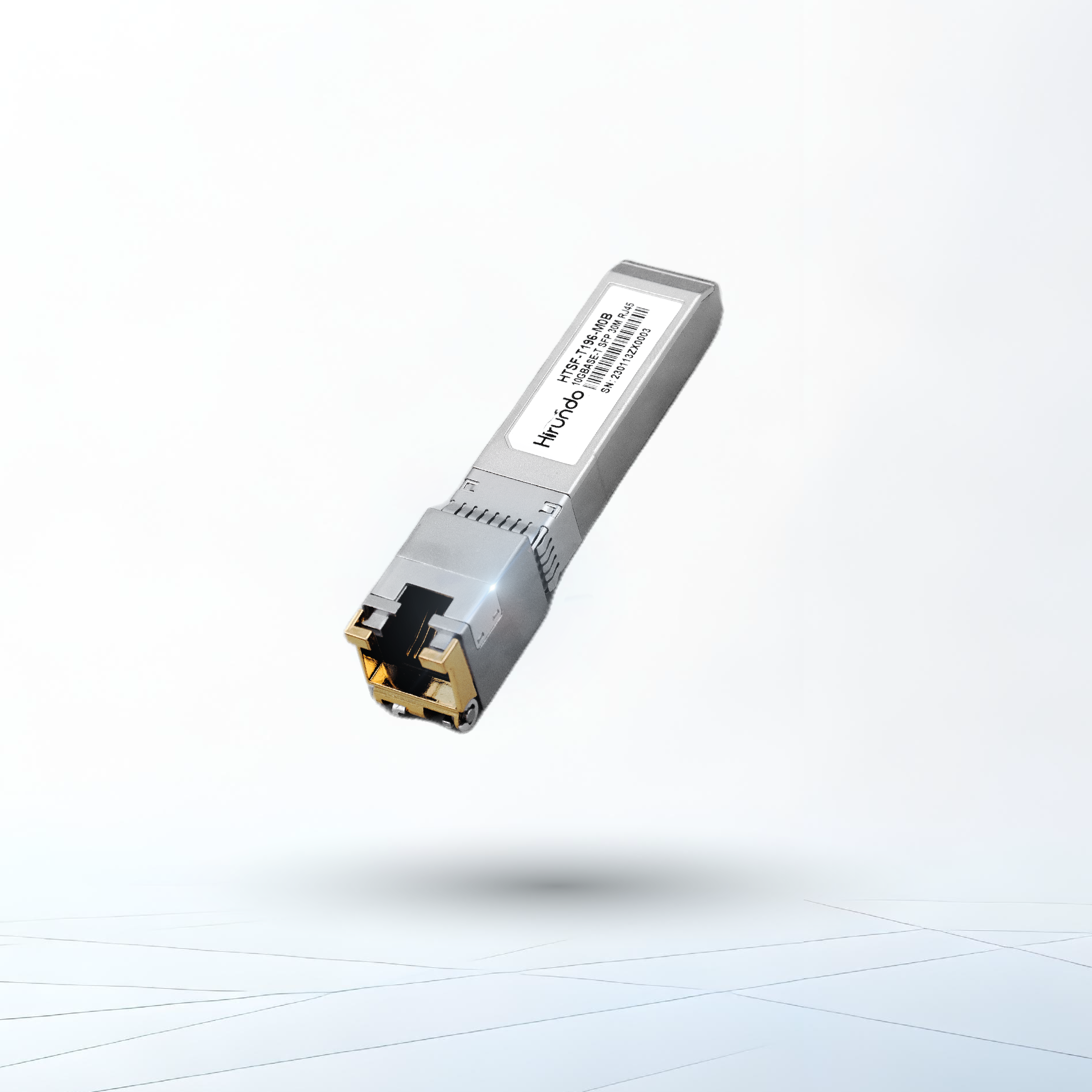

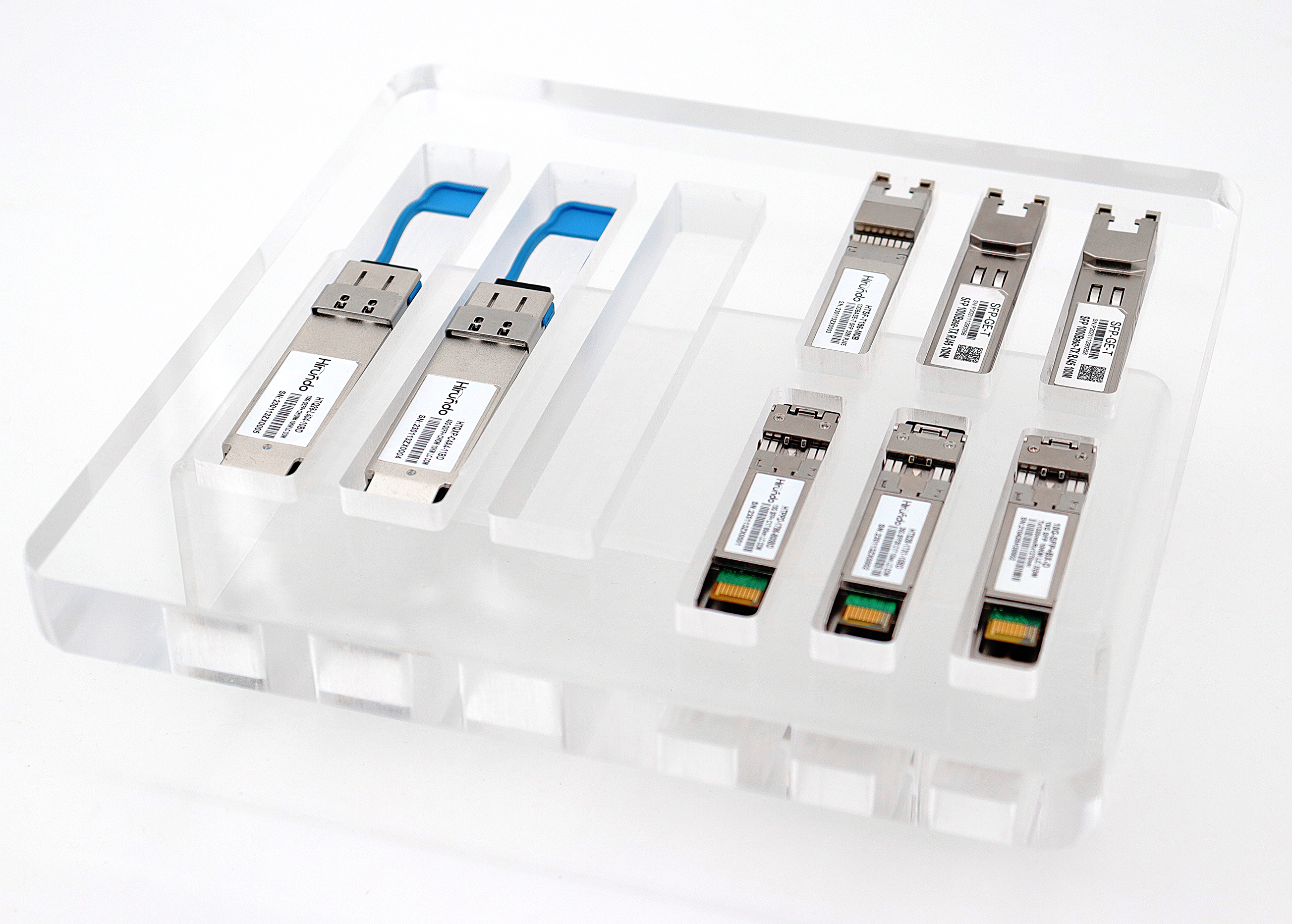

It is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. it converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification. The high performance 1270～1610nm CWDM DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links. The SFP+ Module compliant with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

Order information

Parameter	Symbol	Unit	Min	Typ	Max	Notes
Supply Voltage	VCC	V	3.14		3.46
Supply Current	ICC	A			0.3
Power Consumption	Pc	W			1
Transmitter
Signaling rate per lane		Gbps		25.78
Input Differential Impedance	RIN	Ω	90	100	110
Differential data input swing	VIN	mVp-p	200		600
Receiver
Signaling rate per lane		Gbps		25.78
Output Differential Impedance	RouT	Ω	90	100	110
Differential data output swing	VouT	mVp-p	300		900
IIC communication
IIC Clock frequency	-	KHZ	100		400

Specifications

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Supply Voltage	Vcc	3.135		3.465	V
Supply Current	Icc			380	mA
Power Consumption	P			1.5	W
Transmitter Section:
Input differential impedance	Rin		100		Ω	1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT)	V	-0.3		4	V
Differential input voltage swing	Vin,pp	180		700	mV	2
Transmit Disable Voltage	VD	2		Vcc	V	3
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V
Receiver Section:
Single Ended Output Voltage Tolerance	V	-0.3		4	V
Rx Output Diff Voltage	Vo	300		850	mV
Rx Output Rise and Fall Time	Tr/Tf	30			ps	4
LOS Fault	VLOS fault	2		VccHOST	V	5
LOS Normal	VLOS norm	Vee		Vee+0.8	V	5
