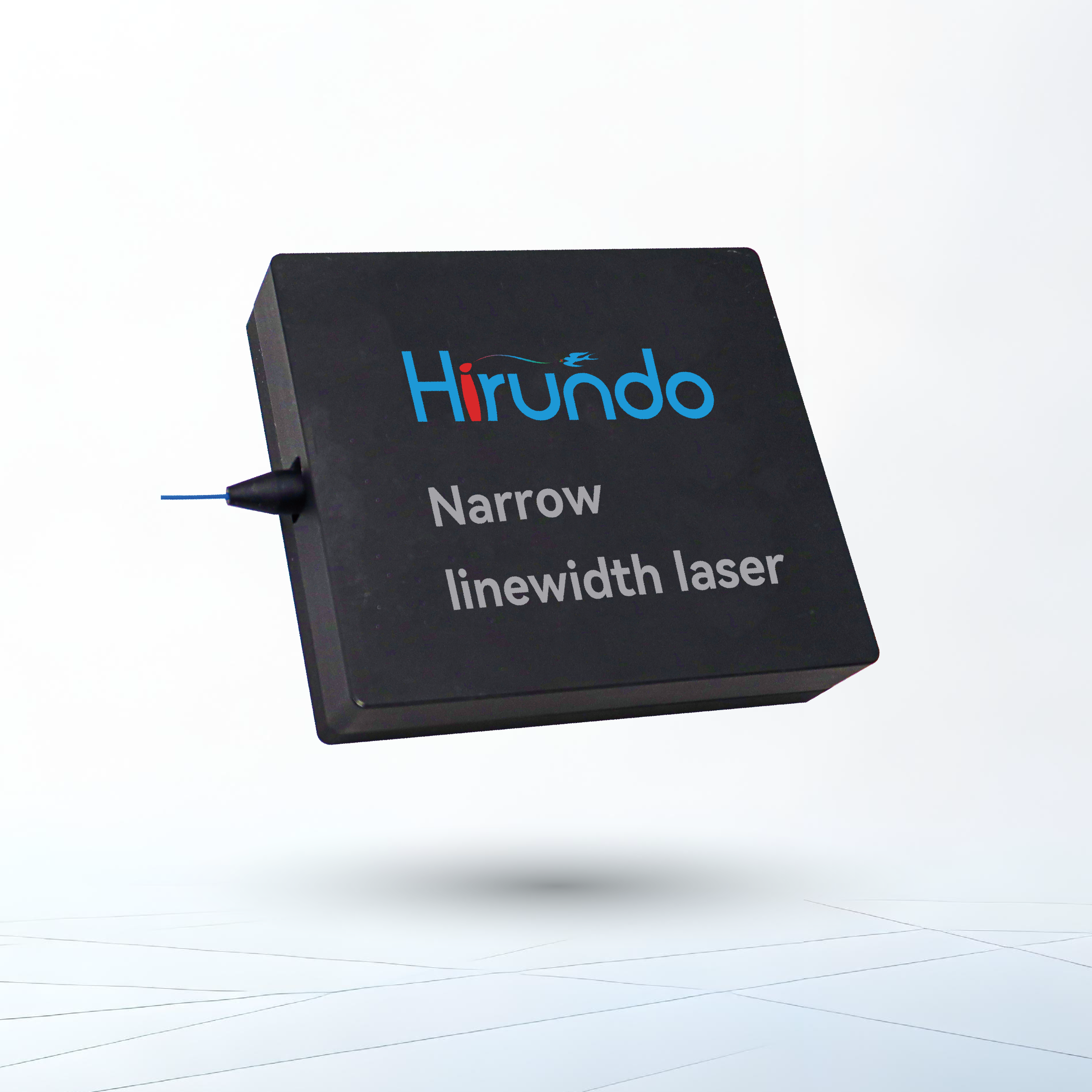

14PIN butterfly package; Single longitudinal mode, wavelength can be customized; Ultra-low phase noise and relative intensity noise (RIN) ; Low sensitivity to vibration and noise;Narrow linewidth (<5 kHz), long coherence length;Guarantee no mode jump within the operating life and temperature range; Unparalleled wavelength stability over lifetime and temperature

Order information

NLSL-XXXXXXXXXX-01

Specifications

Parameter	Min	Typical	Max	Unit
Output power1	15	20		mW
Center wavelength	1560.43	1560.48	1560.53	nm
Optical Linewidth			5	kHz
Thermal frequency tuning range2	12	15	-	GHz
Polarization Extinction Ratio	20	-		dB
Optical Isolation	40	-	-	dB
Polarization Orientation	Slow axis alignment
Power supply	5.7	5.9	6.5	V
Fiber Connector	FC/APC
