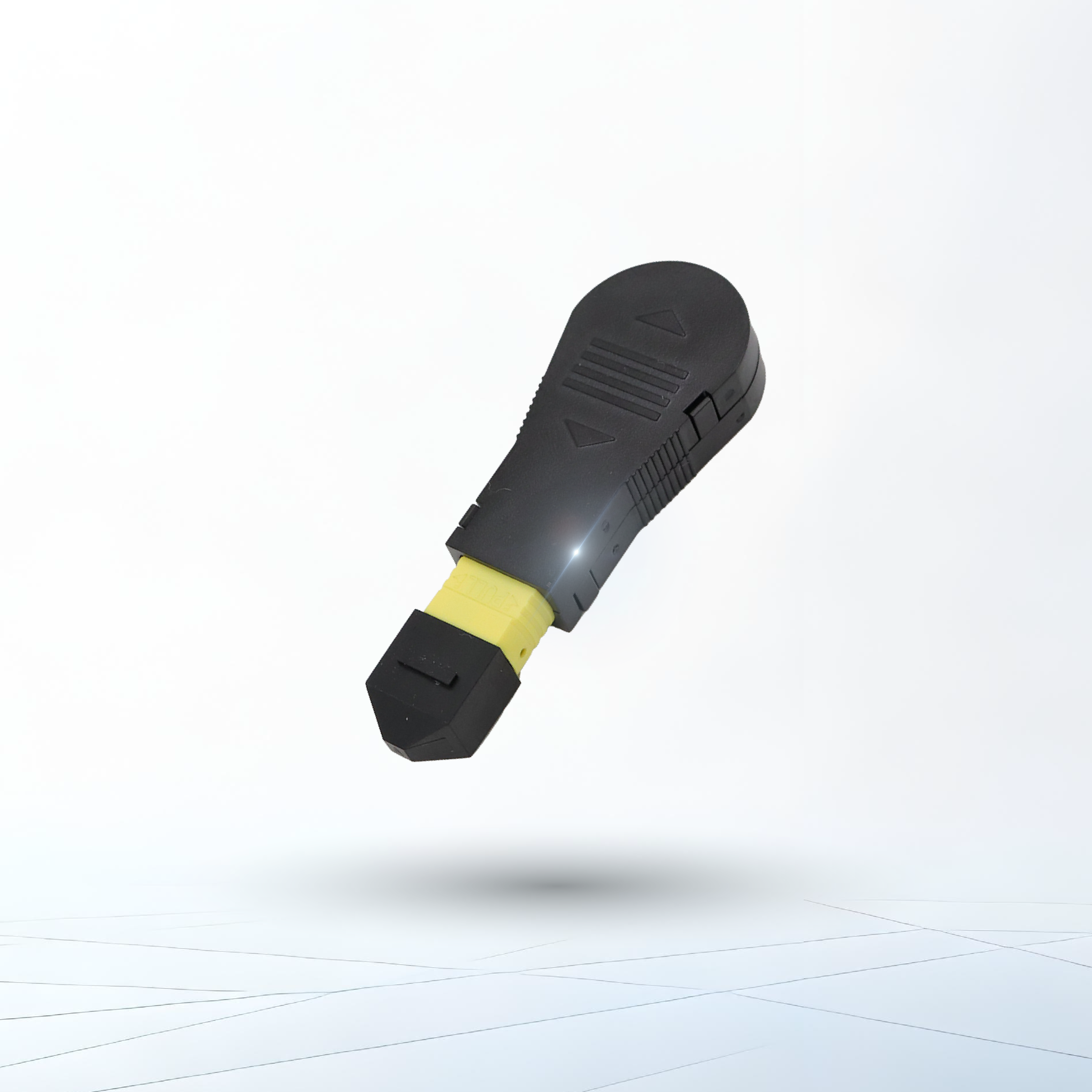

MPO/MTP Loopback are used widely within testing environment especially within parallel optics 40 and 100G networks. Devices allow verification and testing of transceivers featuring MPO/MTP interface-40G BASED-SR4 QSFP+ or 100G BASE-SR10 CXP/CFPdevices. Loopbacks are built to link Transceivers(TX) and Receivers (RX) positions of MPO/MTP transceivers interfaces. MPO/MTP loopbacks can facilitate
and speed up lL testing of optical networks segments by connecting them to MPO/MTP trunks/patch leads.

Order information

AAWG(Athermal AWG) PN：AAWG-XXXXXXXXXX-XX (AAWG+10 Code+2 Serial Number)

Specifications

Characteristic	Unit	Single Mode	Single Mode (Low Loss)	Multi Mode	Multi Mode (Low Loss)
Fiber Channel	EA	8,12,24	8,12,24	8,12,24,48	8,12,24
MPO/MTP Connector Insertion Loss(IL)	dB	≤0.75	≤0.35	≤0.7	≤0.35
MPO/MTP Connector return loss(IL)	dB	≥60		≥20
Fanout connector insertion loss(IL)	dB	≤0.3	≤0.2	≤0.3	≤0.2
Fanout connector return loss(IL)	dB	≥60(APC); ≥50(UPC)		≥25
