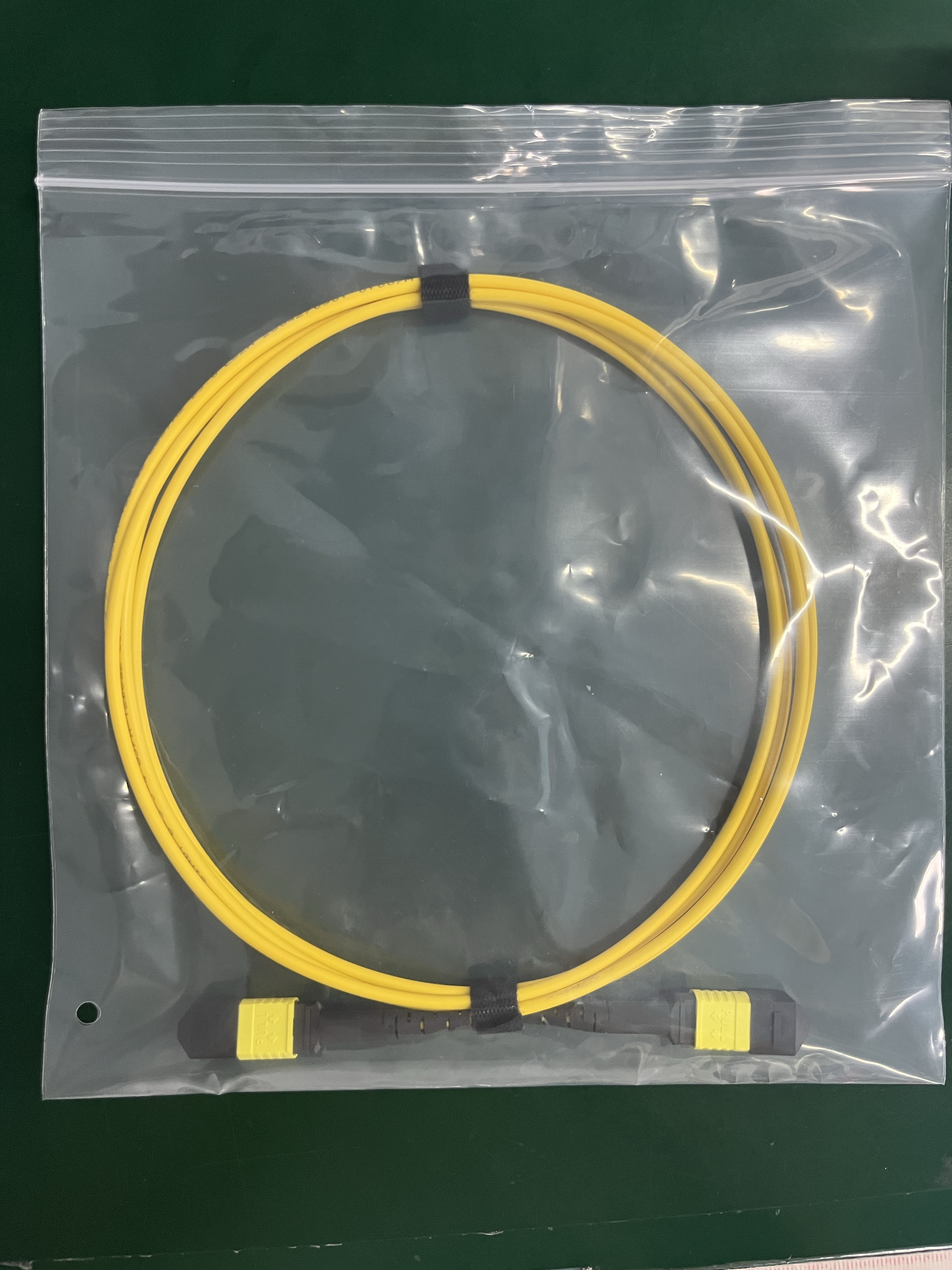

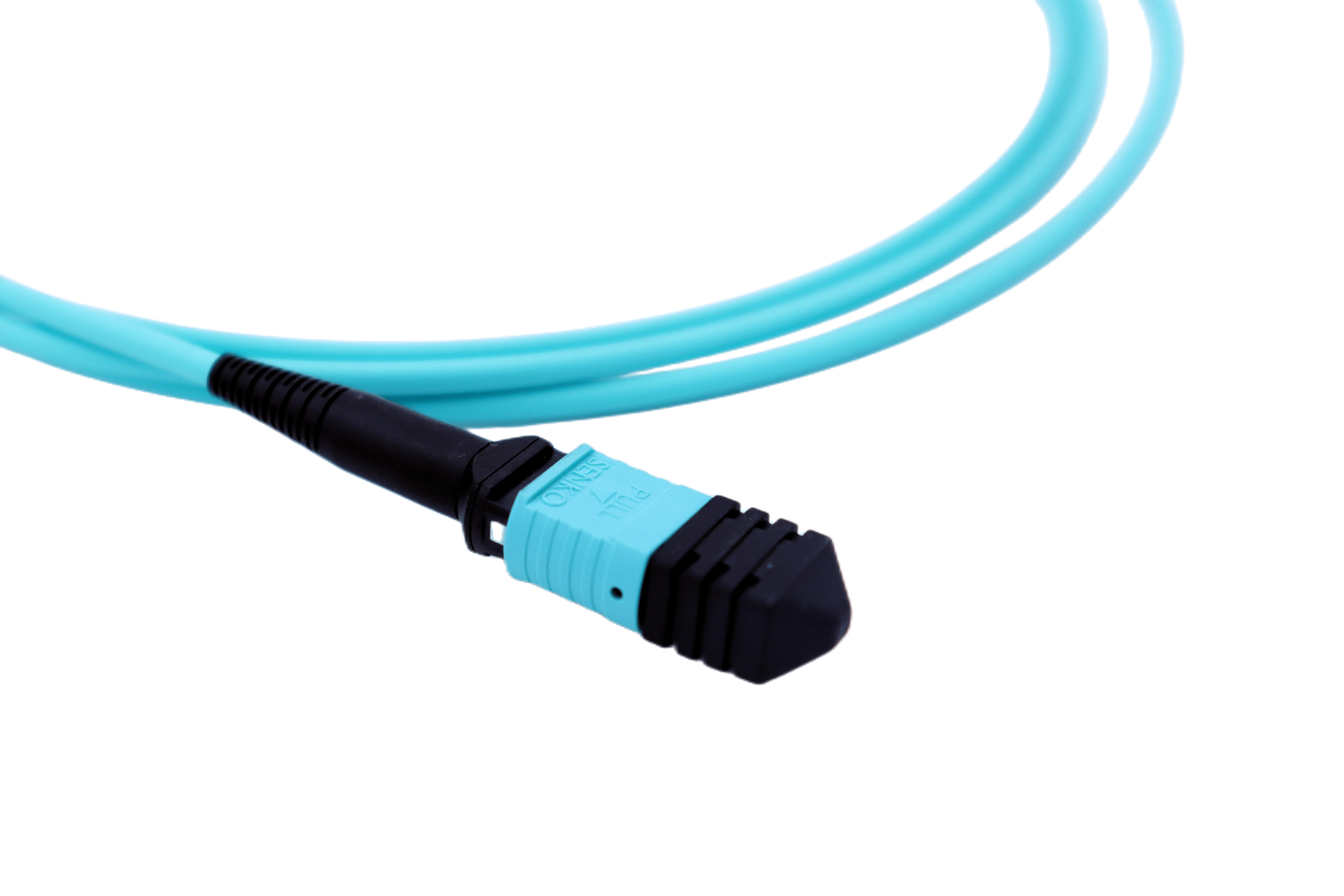

MPO / MTP multi-core fiber optic cable patch cord component products are made up of multi-core fiber optic cable and corresponding 4/8/12/24/48-core high density MPO/MTP. This product is available in male or female MPO/MTP models and is available in a variety of sizes of 448-core single-mode and multi-mode fiber optic cables, such as ordinary G652D/G657A1/G657A2 single-mode fiber optic cable, multi-mode 62.5/125, OM2/OM3/OM3/OM4, or high-performance 10G multi-mode fiber optic cables that are resistant to bending.

Order information

JUMP (Jumper) PN:JUMP-XXX (JUMP+7 Code+2 Serial Number)

Specifications

Characteristic	Unit	Single Mode	Single Mode (Low Loss)	Multi Mode	Multi Mode (Low Loss)
Fiber Channel	EA	8,12,24	8,12,24	8,12,24,48	8,12,24
MPO/MTP Connector Insertion Loss(IL)	dB	≤0.75	≤0.35	≤0.7	≤0.35
MPO/MTP Connector return loss(IL)	dB	≥60		≥20
Fanout connector insertion loss(IL)	dB	≤0.3	≤0.2	≤0.3	≤0.2
Fanout connector return loss(IL)	dB	≥60(APC); ≥50(UPC)		≥25
