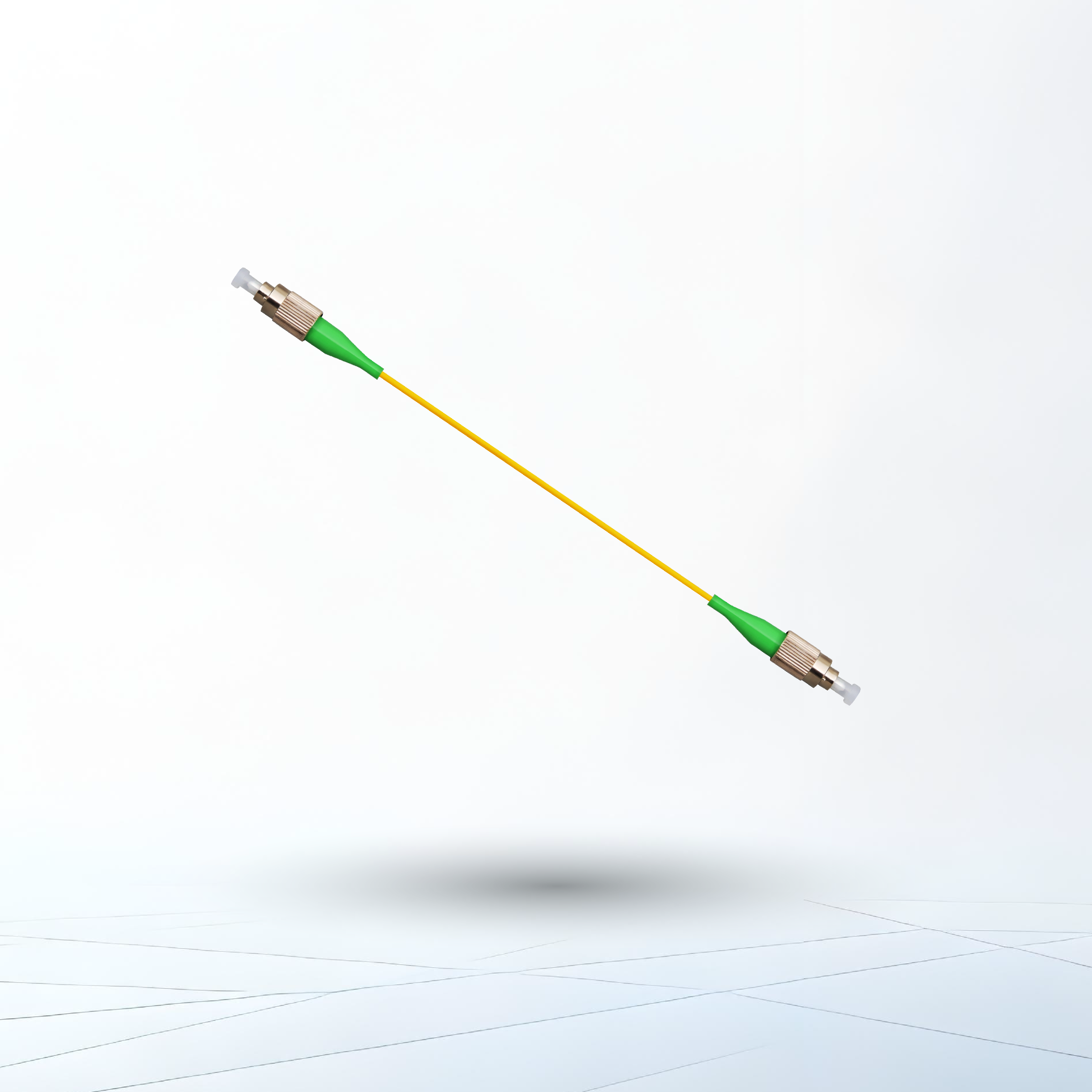

A PM fiber Patch Cord is a connector plug installed at both ends of the fiber optic cable to enable optical connection, and a plug at one end is called a tail fiber. Optical Fiber Patch Cord/Cable is similar to coaxial cables, but does not have a mesh shield. The center is the glass core of light propagation.

Order information

JUMP (Jumper) PN:JUMP-XXX (JUMP+7 Code+2 Serial Number)

Specifications

Parameters	Unit	FC, SC, LC				ST, MU		MTRJ
		SM		MM		SM	MM	SM	MM
		UPC	APC	UPC	APC	UPC	UPC	UPC	UPC
Operating Wavelength	nm	1310,1550		850,1300		1310,1550	850,1300	1310,1550	850,1300
Insertion Loss	dB	≤0.3	≤0.3	≤0.3		≤0.3	≤0.3	≤0.3	≤0.3
Return Loss	dB	≥55	≥60	≥35		≥50	≥35	≥50	≥35
Repeatability	dB	≤0.1
Interchangeability	dB	≤0.2
Number of times of plug and pull	Times	≥1000
Operating Temperature	℃	-10~+70
Storage Temperature	℃	-40~+85
