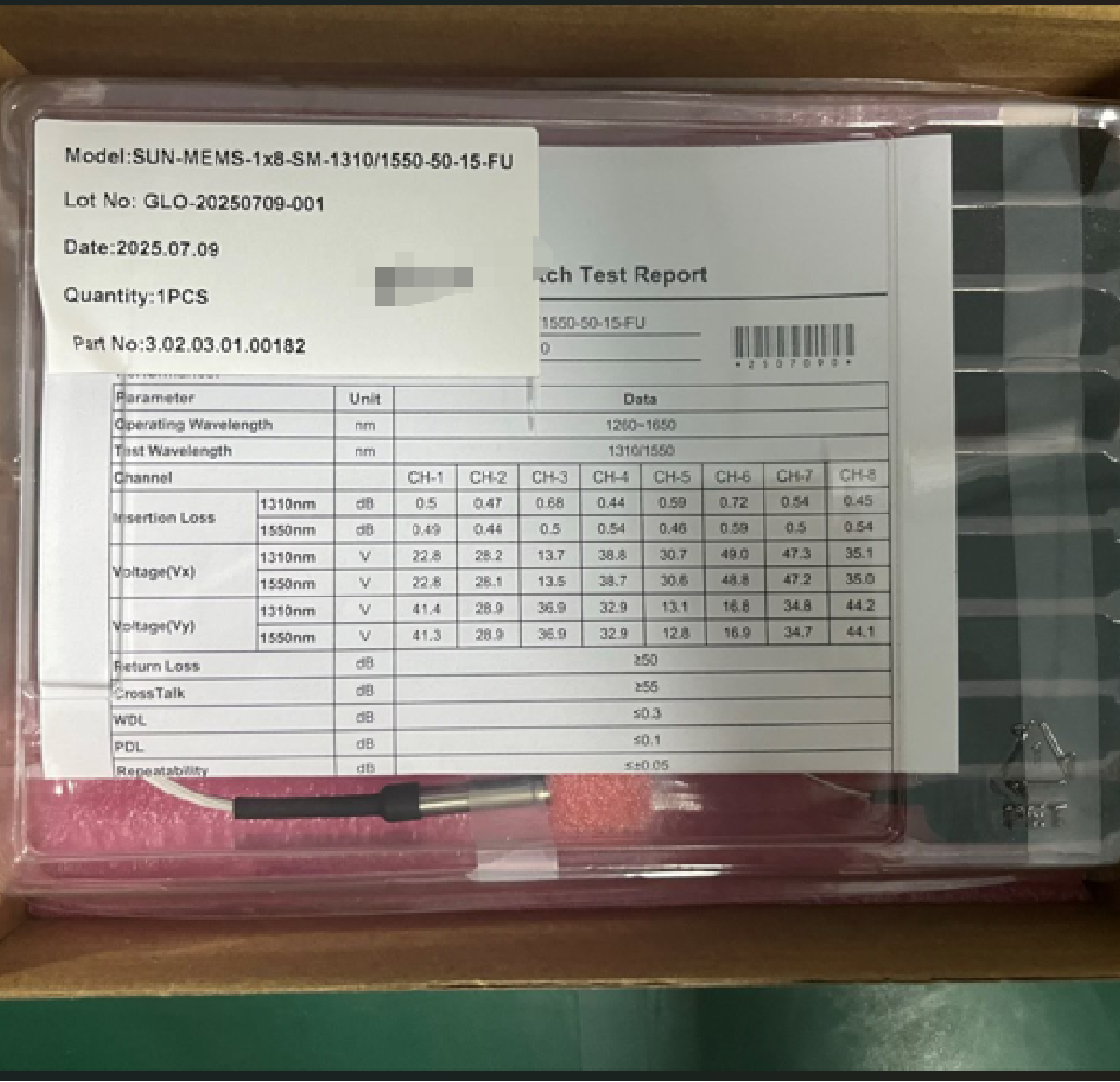

Parameters

Unit

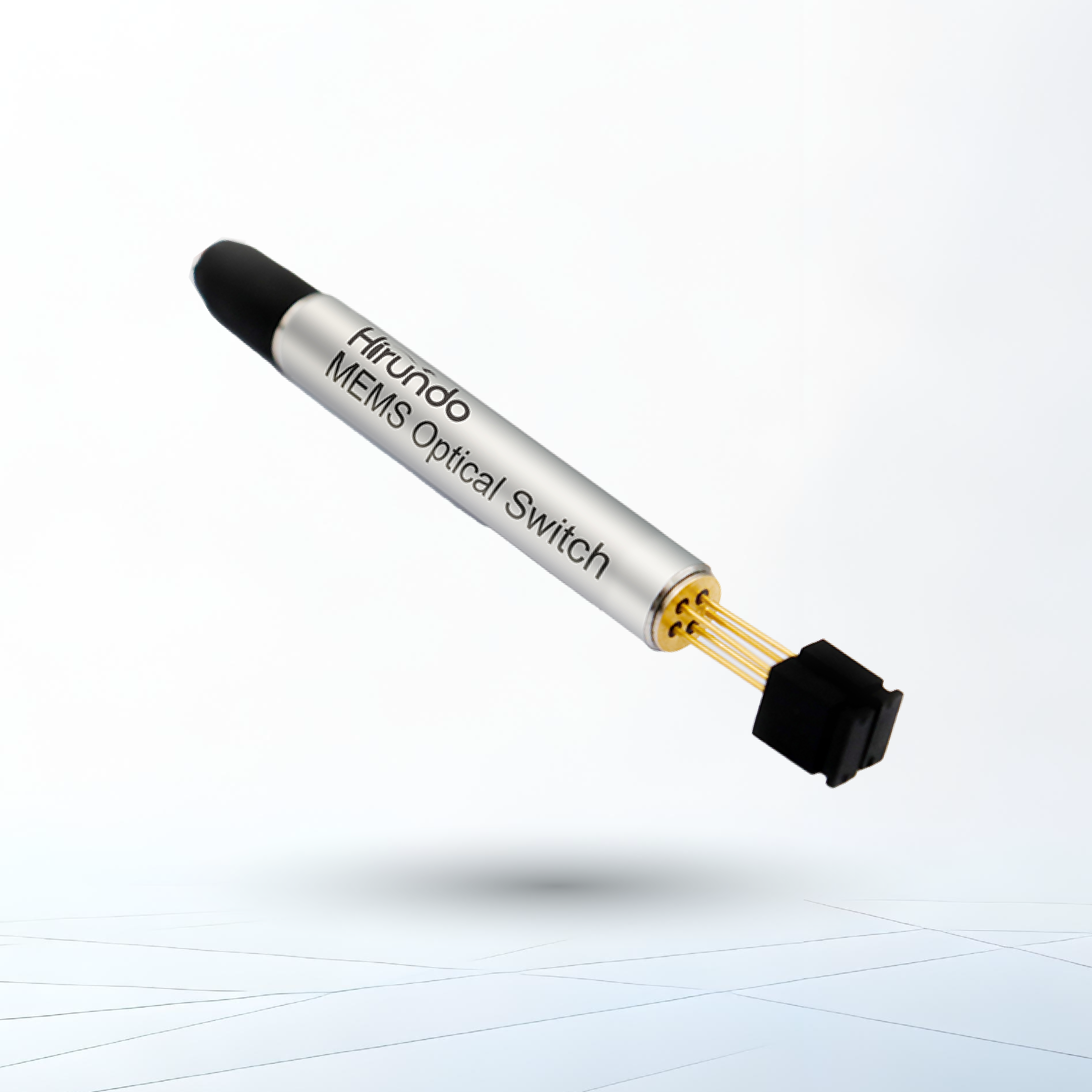

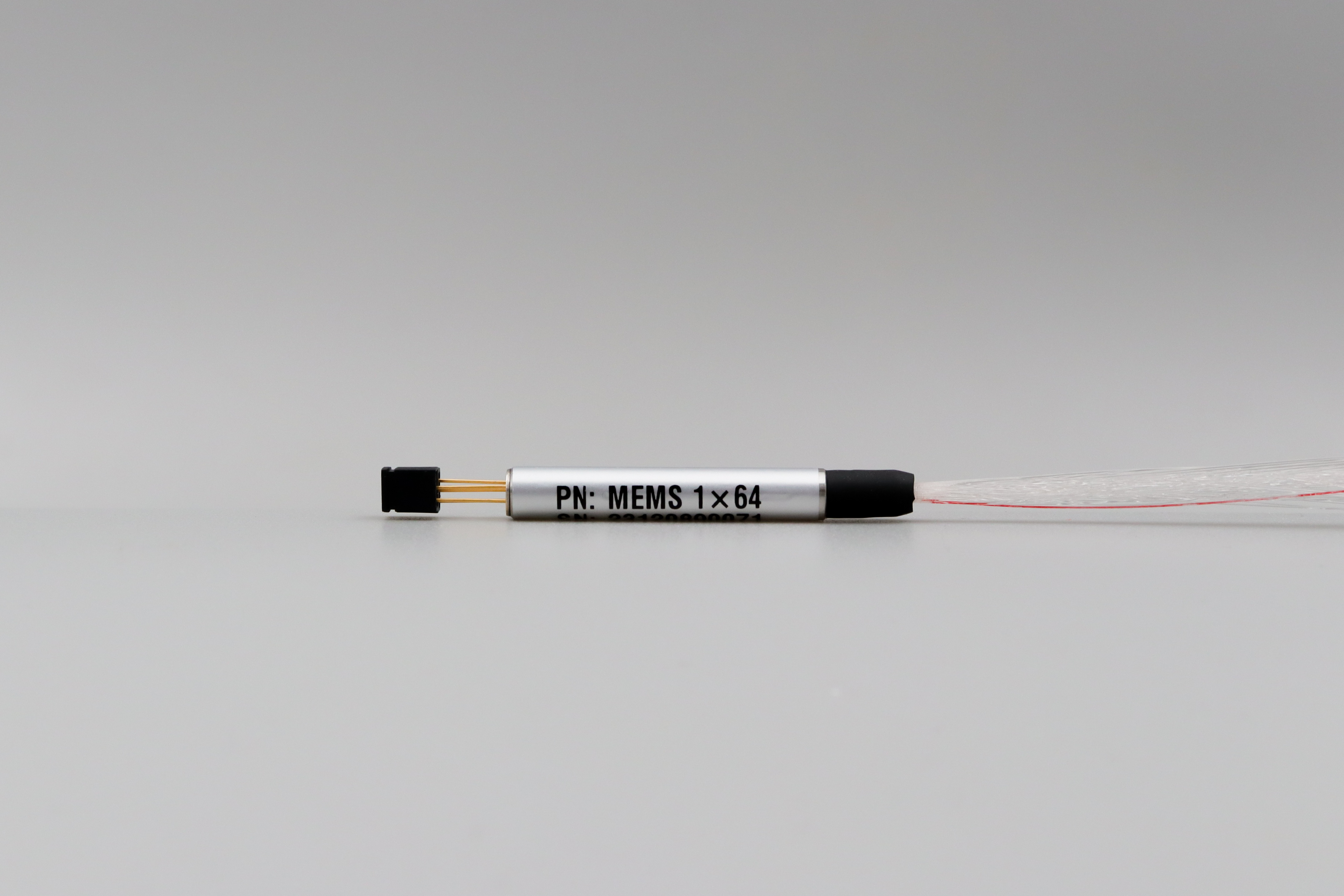

MEMS 1×N-SM

Working Wavelength

nm

O/C/L/L+ band

Testing Wavelength

nm

1310/1550/1625/1650

Insertion Loss

dB

@CWL Single-band

≤0.8 (N≤8)

≤1.0 (8≤16)

≤1.3 (16

≤1.5 (32

≤2.0 (64

≤2.2 (144

@CWL Dual-band

≤1.0 (N≤8)

≤1.2 (8

≤1.5 (16

≤1.7 (32

≤2.2 (64

≤2.4 (144

 WDL

dB

≤0.3 (N≤64)

≤0.4 (64

≤0.5 (144

 PDL

dB

≤0.15

 Return Loss

dB

≥45

 Crosstalk

dB

≥50

 Repeatability

dB

≤±0.05

 Switching Time

ms

≤15

 Durability

times

≥10⁹

 Input Optical Power

mW

≤500

 Operating Voltage

V

DC 5V±10%

 Operating Current

mA

≤50 (N≤16)

≤250 (16

≤350 (64

≤500 (144

 Operating Temp.

°C

-20 ~ +85

 Storage Temp.

°C

-40 ~ +85

 Dimension

(L×W×H)

mm

M1: 34×24×11 ±0.2 (N≤64, Bare Fiber)

M2: 60×24×11 ±0.2 (N≤16, Loose Tube)

M3: 90×55×12 ±0.2 (16

M4: 100×100×12 ±0.2 (64

M5: 110×141×12 ±0.2 (144

1.Within operating temperature and all SOP.

2.Excluding connector.

3.WDL is measured in a ±20nm range at 23°C。
