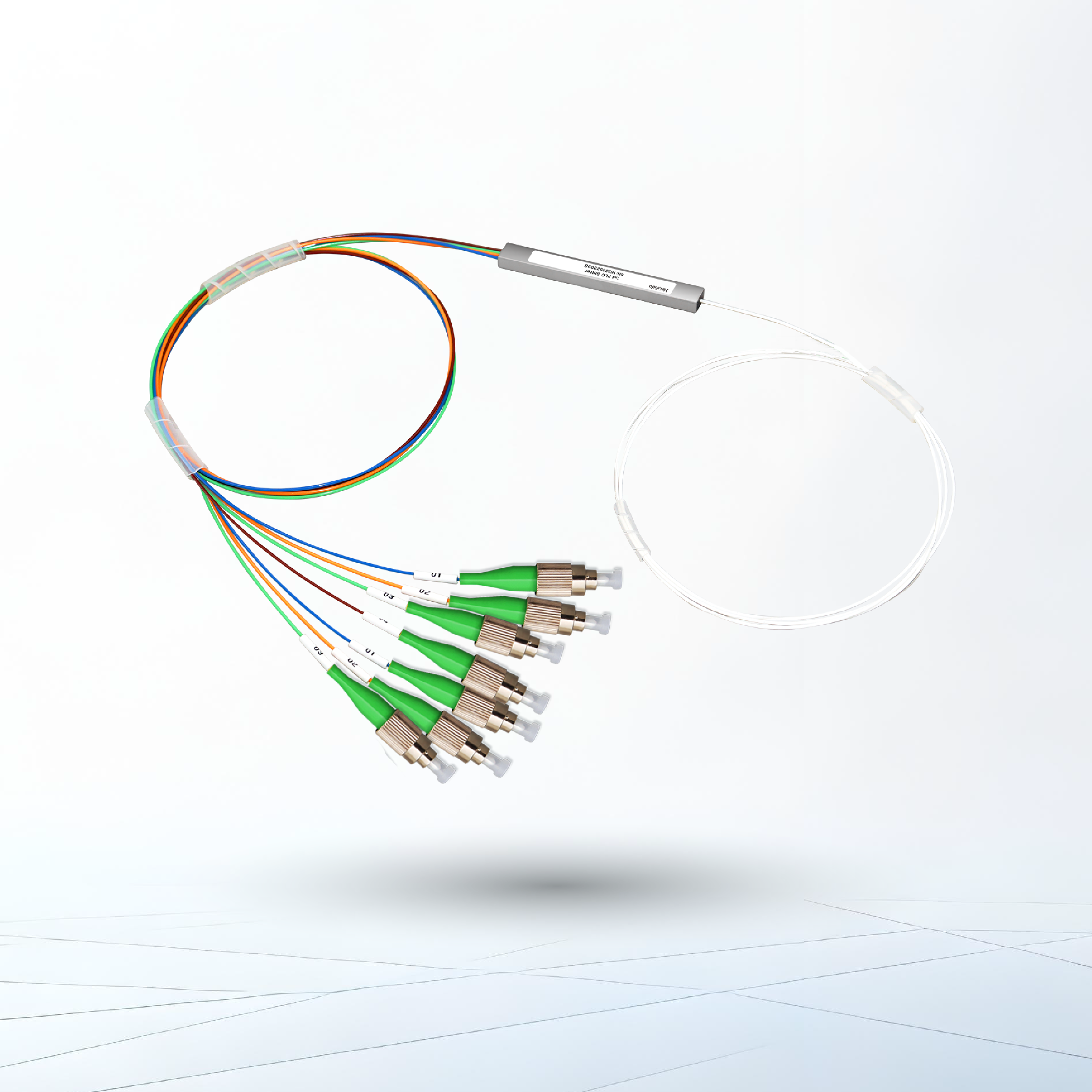

4 core Fan-in & Fan-out
|
Device Number |
4-FAN-42 |
|
|
Description |
4 core FIFO |
|
|
Optical performance |
Scope |
Typical value |
|
Average insertion loss@1550nm (dB) |
<0.5 |
0.35 |
|
Maximum insertion loss(dB) |
<0.5 |
0.35 |
|
Return loss(dB) |
>45 |
50 |
|
Crosstalk(dB) |
<-50dB |
-55 |
|
Geometric dimensions |
|
|
|
MCF Pigtail length(m) |
>2m |
2.1 |
|
SMF Pigtail length (m) |
>2m |
2.1 |
|
Package size |
|
|
|
Size (mm) |
Փ3.0*25~30mm |
|
|
Working temperature (℃) |
~40~+70 |
|
7 core Fan-in & Fan-out
|
Device Number |
7-FAN-42 |
|
|
Description |
7 core FIFO |
|
|
Optical performance |
Scope |
Typical value |
|
Average insertion loss@1550nm (dB) |
<0.75 |
0.6 |
|
Maximum insertion loss(dB) |
<0.75 |
0.65 |
|
Return loss(dB) |
>45 |
50 |
|
Crosstalk(dB) |
<-50dB |
-55 |
|
Geometric dimensions |
|
|
|
MCF Pigtail length(m) |
>2m |
2.1 |
|
SMF Pigtail length (m) |
>2m |
2.1 |
|
Package size |
|
|
|
Size (mm) |
Փ4x100 |
|
|
Working temperature (℃) |
~40~+70 |
|
8 core Fan-in & Fan-out
|
Device Number |
8-FAN-42 |
|
|
Description |
8 core FIFO |
|
|
Optical performance |
Scope |
Typical value |
|
Average insertion loss@1550nm (dB) |
<1.2 |
0.9 |
|
Maximum insertion loss(dB) |
<1.2 |
1.0 |
|
Return loss(dB) |
>45 |
50 |
|
Crosstalk(dB) |
<-50dB |
-55 |
|
Geometric dimensions |
|
|
|
MCF Pigtail length(m) |
>2m |
2.1 |
|
SMF Pigtail length (m) |
>2m |
2.1 |
|
Package size |
|
|
|
Size (mm) |
Փ4x100 |
|
|
Working temperature (℃) |
~40~+70 |
|
