Parameter |
Unit |
Value |
|

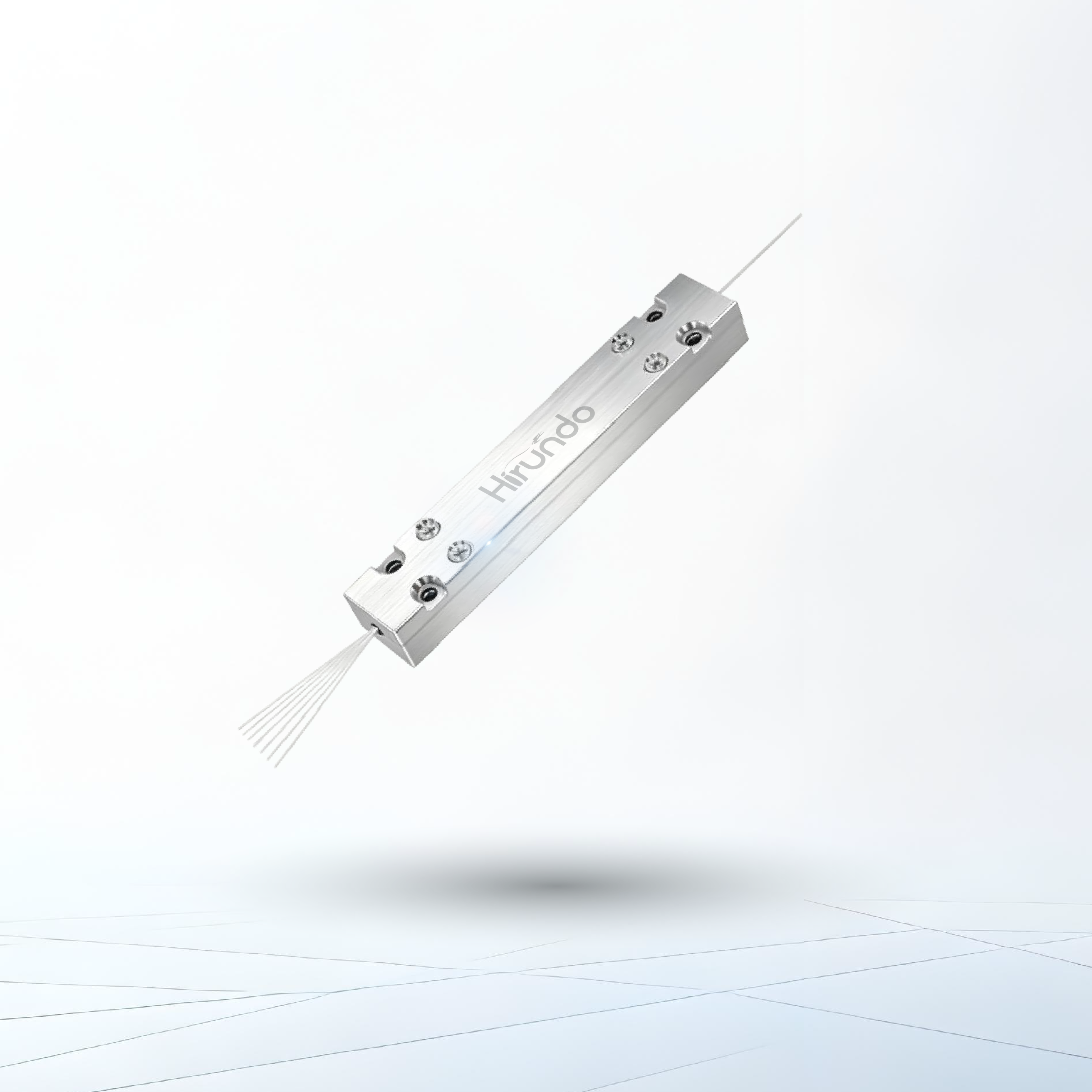

Product Type |
|
(N+1) x 1 |
|
Pump Wavelength Range |
nm |
900 - 1000 |
|
Signal Wavelength Range |
nm |
1064,1550 |
|
Fiber Type for Input(Pump Channel) |
µm |
Nufern 105/125(0.15 NA or 0.22 NA) |
|
Fiber Type for Input(Signal Channel) |
µm |
PM980, PM1550, PM-6/125 DC or PM-8/125 DC |
|
Fiber Type for Output |
µm |
PM-10/125 DC or PM-20/125 DC |
|
Max. Signal Channel Insertion Loss |
dB |
0.5 |
|
Min. Signal Channel PER |
|
18 |
|
Min. Pump Efficiency |
% |
98 |
|
Max. Input Pump Power |
W |
6 x 100 |
|
Package Dimensions |
mm |
100(L) x 15(W) x 10(H) |
|
Operating Temperature |
℃ |
-5 to +65 |
|
Storage Temperature |
℃ |
-40 to +85 |
