Parameters

Unit

Specifications

Center Wavelength

nm

1060, 1550

Operating Wavelength

nm

λc ± 40

Optical Delay Range

ps

0 - 500 ps Continuous

Zero Point Delay Offset

ps

~440

Optical Delay Resolution

-

10 µm or 34 fs per Encoder Count

Insertion Loss¹

dB

≤1.2

Insertion Loss Variation

dB

≤0.5

Extinction Ratio (for PM Type)

dB

≥18

PDL

dB

≤0.1

Return Loss

dB

≥50

Electrical Interface

-

2 - Phase Stepper Motor Drive Signal

2 Sensor Connections

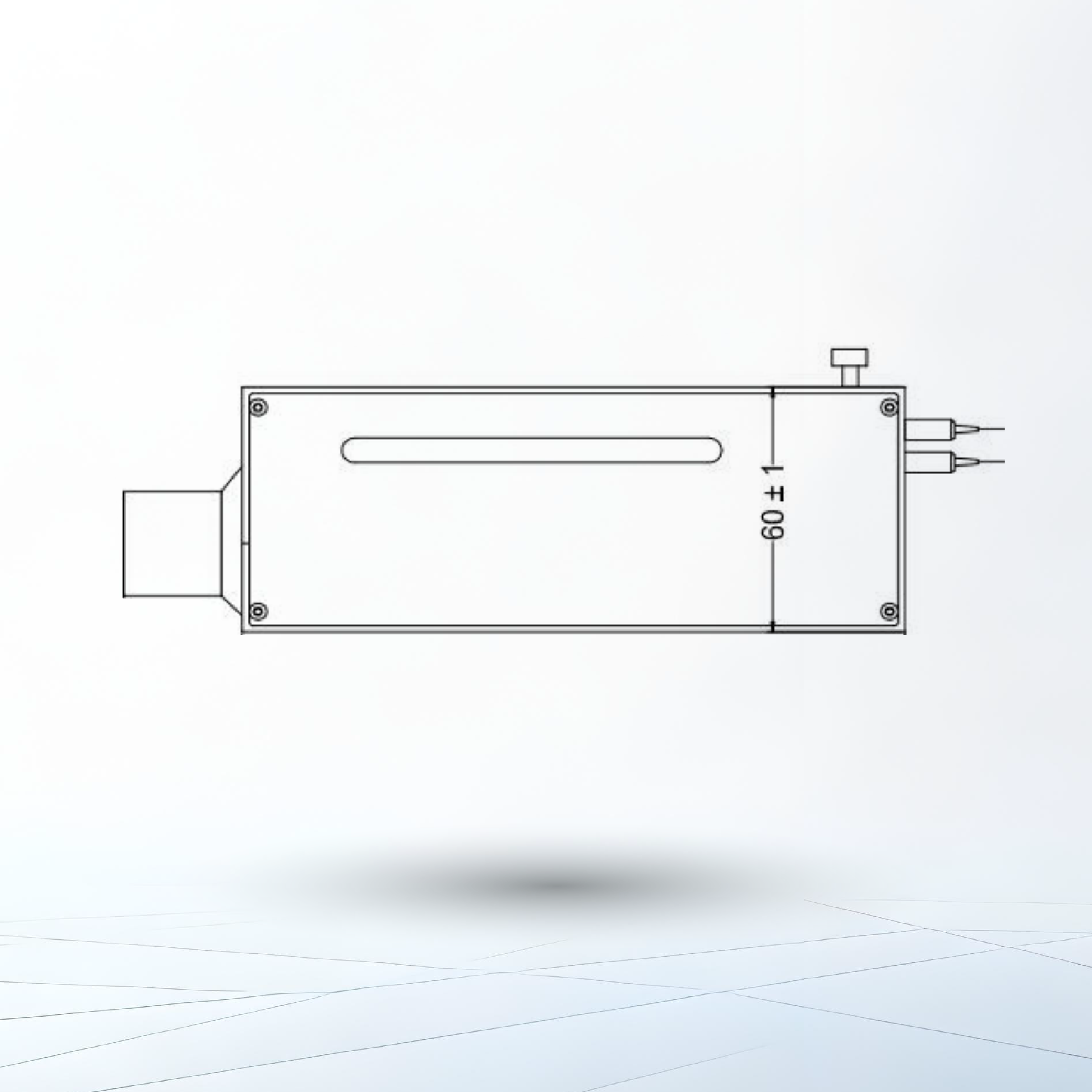

Package dimensions

mm

60 x150x 23

Fiber Type

-

SM or PM Panda fiber

Fiber Length

mm

1000(+100/-0)

Max Optical Power

mW

300

Operating Temperature

℃

0~+40

Storage Temperature

℃

-20~+60

Connector Type

-

N/A

Connector key aligned

-

N/A

Working shaft

-

N/A

Key angle to PM axis

degree

N/A
