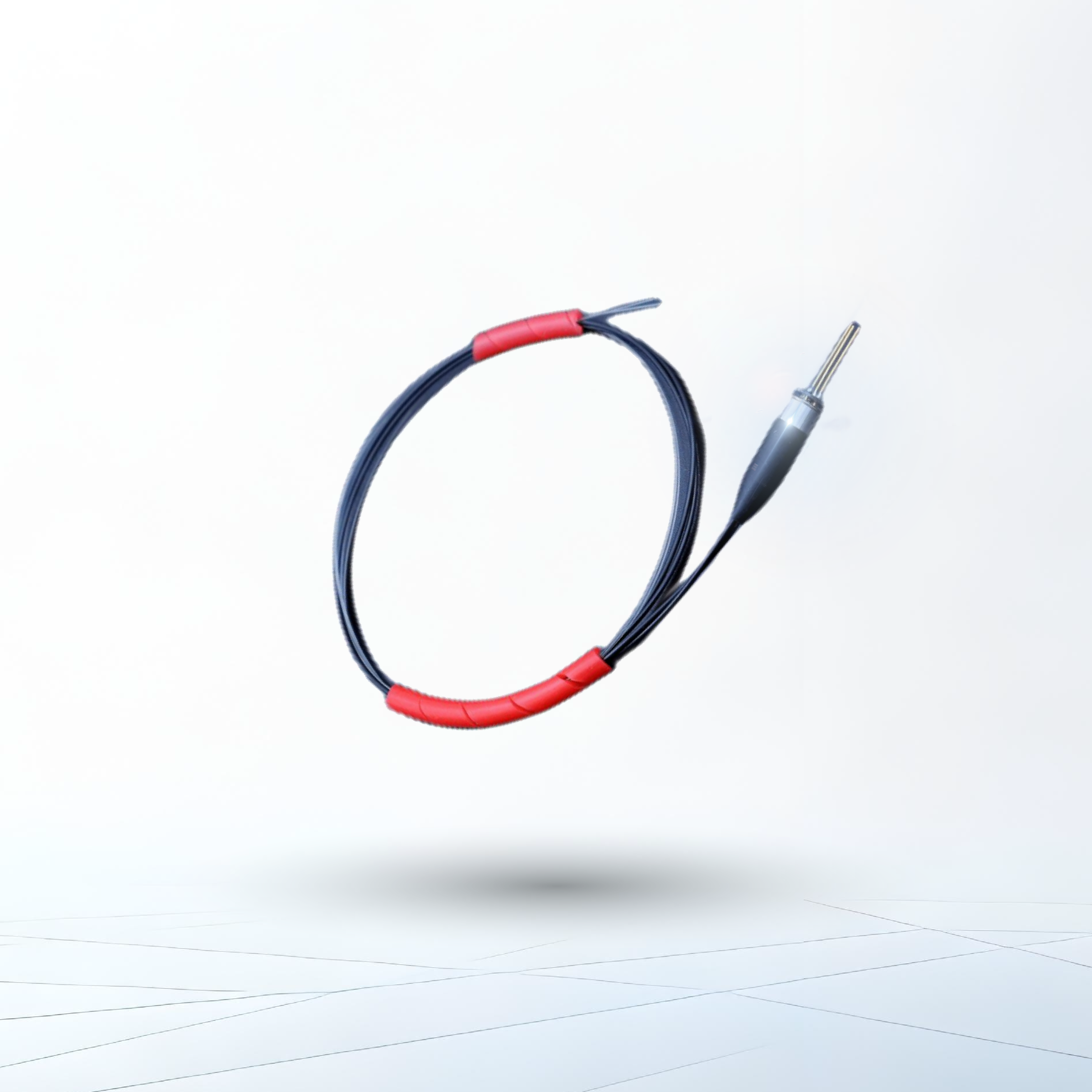

The twin-core pigtail structure enables a certain proportion of light transmission to the detector and the rest of the light to another fiber. Used for WDM network monitoring, fiber amplifiers, optical switches, etc.

Order information

MTPD(TAP-PD) PN:MTPD-XXXXXX-XX(MTPD+8 Code+2 Serial Number)

Specifications

Parameters	Unit	Specifications
Operating wavelength	nm	1310nm/1510nm
Splitting Ratio	-	1%	2%	5%	10%
Maximum input power	dBm	25	22	18	16
Responsiveness	mA/W	7~ 12	14~24	40~60	85~ 100
Insertion Loss1	dB	≤0.5	≤0.5	≤0.6	≤0.6
Return Loss	dB	≥45
Polarization Dependent Loss	dB	≤0.15
Dark current（Max at 25℃)	nA	5
Operation Temperature	℃	-5~75
Storage Temperature	℃	-40~85
